\n The System 28 Short Adjustable Fast Clamping Bolt Enables Fast, Powerful, and Effortless Clamping.
Laser Cut Profiles of Varying Thickness can Easily be Clamped with the All New Adjustable Fast Clamping Bolt. The Clamping Height is Individually Adjusted by a Rotating a Knurled Thimble Ring.
The System 28 Short Adjustable Fast Clamping Bolt Enables Fast, Powerful, and Effortless Clamping.
Laser Cut Profiles of Varying Thickness can Easily be Clamped with the All New Adjustable Fast Clamping Bolt. The Clamping Height is Individually Adjusted by a Rotating a Knurled Thimble Ring.
\n
NEW THIMBLE DESIGN
- With the New Thimble the Height can be Adjusted Within Seconds.
- \nThe Grip Design Allows the Adjusted Height to be Locked in Place.\n
\n
EASY-TO-USE BALL BEARINGS
- It Features Especially Large Balls, which Protect the Bevel of the Bore Holes.
- The Fourth Ball Located in the Center, Reduces Internal Friction and Strengthens the Power of the Handwheel.
- Specifically Made for System 28 Bore Holes, both Welding Tables and Stops.
\n
SECURE CONNECTIONS

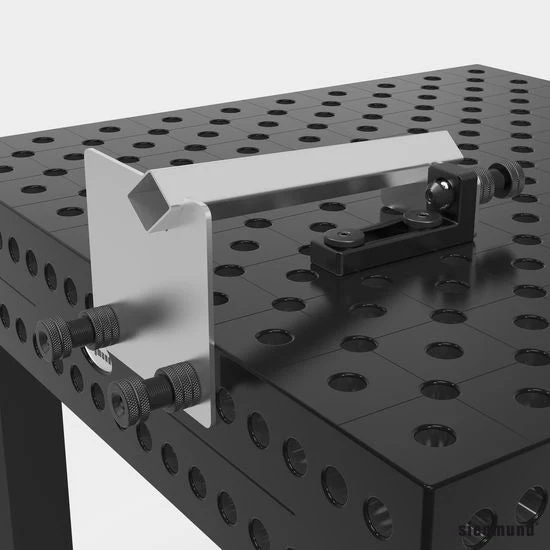

- Laser Cut Profiles of Varying Thickness can Easily be Clamped.
- For Clamping up to 2 Siegmund Components.
- This Bolt MUST NOT be used for Connecting Tables and U-shaped Squares!
\n
HEAVY-DUTY DESIGN
- A Long Lifetime and Efficiency is Guaranteed by its High-Quality Material.
- The Overall Design Allows Any Piece to be Held in Place Tightly.
\n
Specs and Features
of the System 28 Imperial Series
Long Adjustable Fast Clamping Bolt
Item No. US280571
\n
Specs and Features
of the System 28 Imperial Series
Long Adjustable Fast Clamping Bolt
Item No. US280571
Length: 4.5\"
Adjustable Clamping Dimensions: 0.98\"-1.96\"
Weight: 1.9 lbs.
Diameter: 1-1/10\"
Finish: Burnished
Tensile Force: 25 kN
Shearing Force: 220 kN
Tightening Torque Steel: 215 Nm (158.58 ft-.lb)
Tightening Torque Aluminum: 10 Nm
\n
