The System 28 Short Universal Bolt Enables Fast, Powerful, and Effortless Clamping.

Burnished Universal Bolt (Locking Bolt), Perfect Connection Element for Siegmund Elements. It is Used when Elements of Different Material Thickness are Being Interconnected. The Large Balls Shift the Center of Pressure Towards the Outside, and Prevent a Displacement of the Material.

\"\"
\n

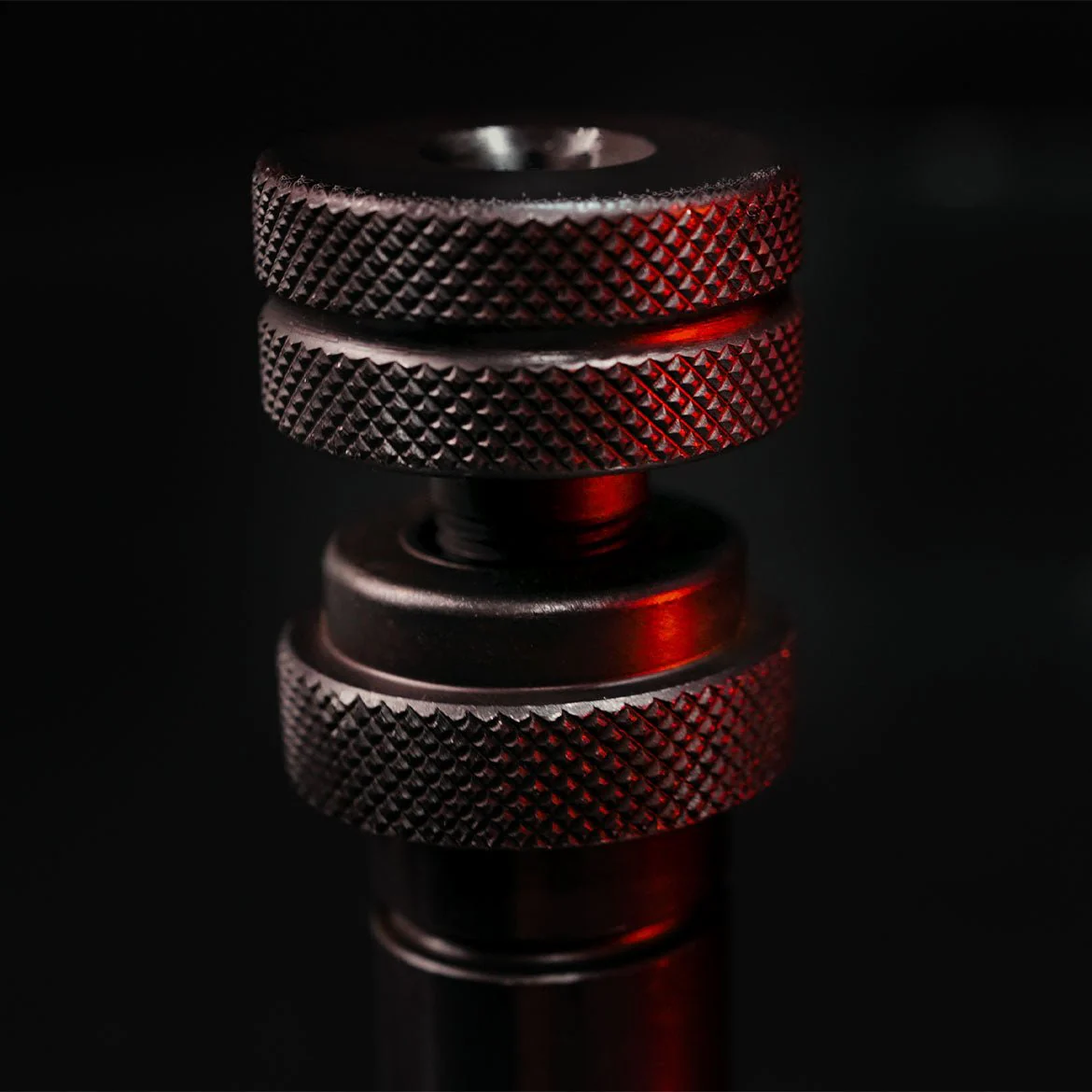

NEW THIMBLE DESIGN

  • With the New Thimble the Height can be Adjusted Within Seconds.
  • \nThe Grip Design Allows the Adjusted Height to be Locked in Place.
    \n
  • The Clamping Range of the Short Universal Bolt is 1.77\" to 2\"
\"\"
\n

EASY-TO-USE BALL BEARINGS

  • It Features Especially Large Balls, which Protect the Bevel of the Bore Holes.
  • The Fourth Ball Located in the Center, Reduces Internal Friction and Strengthens the Power of the Handwheel.
  • Specifically Made for System 28 Bore Holes, both Welding Tables and Stops.
\"\"
\n

SECURE CONNECTIONS

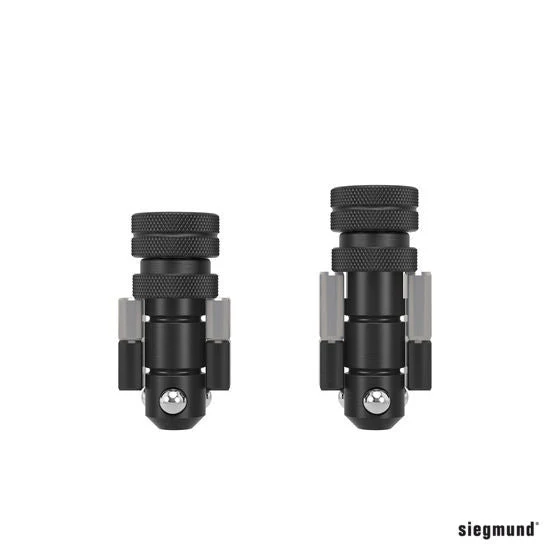

  • Laser Cut Profiles of Varying Thickness can Easily be Clamped.
  • For Clamping up to 2 Siegmund Components.
  • This Bolt MUST NOT be used for Connecting Tables and U-shaped Squares!
\"\"
\n

HEAVY-DUTY DESIGN

  • A Long Lifetime and Efficiency is Guaranteed by its High-Quality Material.
  • The Overall Design Allows Any Piece to be Held in Place Tightly.
\n

Specs and Features
of the System 28 Imperial Series
Short Universal Bolt
Item No. US280532

\n

Specs and Features
of the System 28 Imperial Series
Short Universal Bolt
Item No. US280532

Length: 3.9\"

Weight: 1.3 lbs.

Diameter: 1-1/10\"

Finish: Burnished

Tensile Force: 25 kN

Shearing Force: 200 kN

Tightening Torque Steel: 215 Nm (158.58 ft-.lb)

Tightening Torque Aluminum: 10 Nm

\n

System 28 Imperial Series
Accessory Sets

\n

System 28
Imperial Series Accessory Sets

Sold out

Sold out

Sold out

Sold out

Sold out
","image":["https://img.weldingtablesandfixturespro.shop/images/product/us280532-short-universal-bolt-burnished-1.jpg","https://img.weldingtablesandfixturespro.shop/images/product/us280532-short-universal-bolt-burnished-2.jpg","https://img.weldingtablesandfixturespro.shop/images/product/us280532-short-universal-bolt-burnished-3.jpg","https://img.weldingtablesandfixturespro.shop/images/product/us280532-short-universal-bolt-burnished-4.jpg","https://img.weldingtablesandfixturespro.shop/images/product/us280532-short-universal-bolt-burnished-5.jpg","https://img.weldingtablesandfixturespro.shop/images/product/us280532-short-universal-bolt-burnished-6.jpg","https://img.weldingtablesandfixturespro.shop/images/product/us280532-short-universal-bolt-burnished-7.jpg","https://img.weldingtablesandfixturespro.shop/images/product/us280532-short-universal-bolt-burnished-8.jpg","https://img.weldingtablesandfixturespro.shop/images/product/us280532-short-universal-bolt-burnished-9.jpg","https://img.weldingtablesandfixturespro.shop/images/product/us280532-short-universal-bolt-burnished-10.jpg","https://img.weldingtablesandfixturespro.shop/images/product/us280532-short-universal-bolt-burnished-11.jpg"],"sku":"us280532-short-universal-bolt-burnished","brand":{"@type":"Brand","name":"Siegmund Welding Tables"},"offers":{"@type":"AggregateOffer","lowPrice":104,"highPrice":104,"priceCurrency":"USD","availability":"https://schema.org/InStock","url":"https://weldingtablesandfixturespro.shop/products/us280532-short-universal-bolt-burnished","offerCount":1}}
HomeStore

US280532: Short Universal Bolt (Burnished)

US280532: Short Universal Bolt (Burnished)

The System 28 Short Universal Bolt Enables Fast, Powerful, and Effortless Clamping.

Burnished Universal Bolt (Locking Bolt), Perfect Connection Element for Siegmund Elements. It is Used when Elements of Different Material Thickness are Being Interconnected. The Large Balls Shift the Center of Pressure Towards the Outside, and Prevent a Displacement of the Material.

NEW THIMBLE DESIGN

  • With the New Thimble the Height can be Adjusted Within Seconds.
  • The Grip Design Allows the Adjusted Height to be Locked in Place.
  • The Clamping Range of the Short Universal Bolt is 1.77" to 2"

EASY-TO-USE BALL BEARINGS

  • It Features Especially Large Balls, which Protect the Bevel of the Bore Holes.
  • The Fourth Ball Located in the Center, Reduces Internal Friction and Strengthens the Power of the Handwheel.
  • Specifically Made for System 28 Bore Holes, both Welding Tables and Stops.

SECURE CONNECTIONS

  • Laser Cut Profiles of Varying Thickness can Easily be Clamped.
  • For Clamping up to 2 Siegmund Components.
  • This Bolt MUST NOT be used for Connecting Tables and U-shaped Squares!

HEAVY-DUTY DESIGN

  • A Long Lifetime and Efficiency is Guaranteed by its High-Quality Material.
  • The Overall Design Allows Any Piece to be Held in Place Tightly.

Specs and Features
of the System 28 Imperial Series
Short Universal Bolt
Item No. US280532

Specs and Features
of the System 28 Imperial Series
Short Universal Bolt
Item No. US280532

Length: 3.9"

Weight: 1.3 lbs.

Diameter: 1-1/10"

Finish: Burnished

Tensile Force: 25 kN

Shearing Force: 200 kN

Tightening Torque Steel: 215 Nm (158.58 ft-.lb)

Tightening Torque Aluminum: 10 Nm

System 28 Imperial Series
Accessory Sets

System 28
Imperial Series Accessory Sets

Sold out

Sold out

Sold out

Sold out

Sold out
$104.00
US280532: Short Universal Bolt (Burnished)—
$104.00
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8
Product image 9

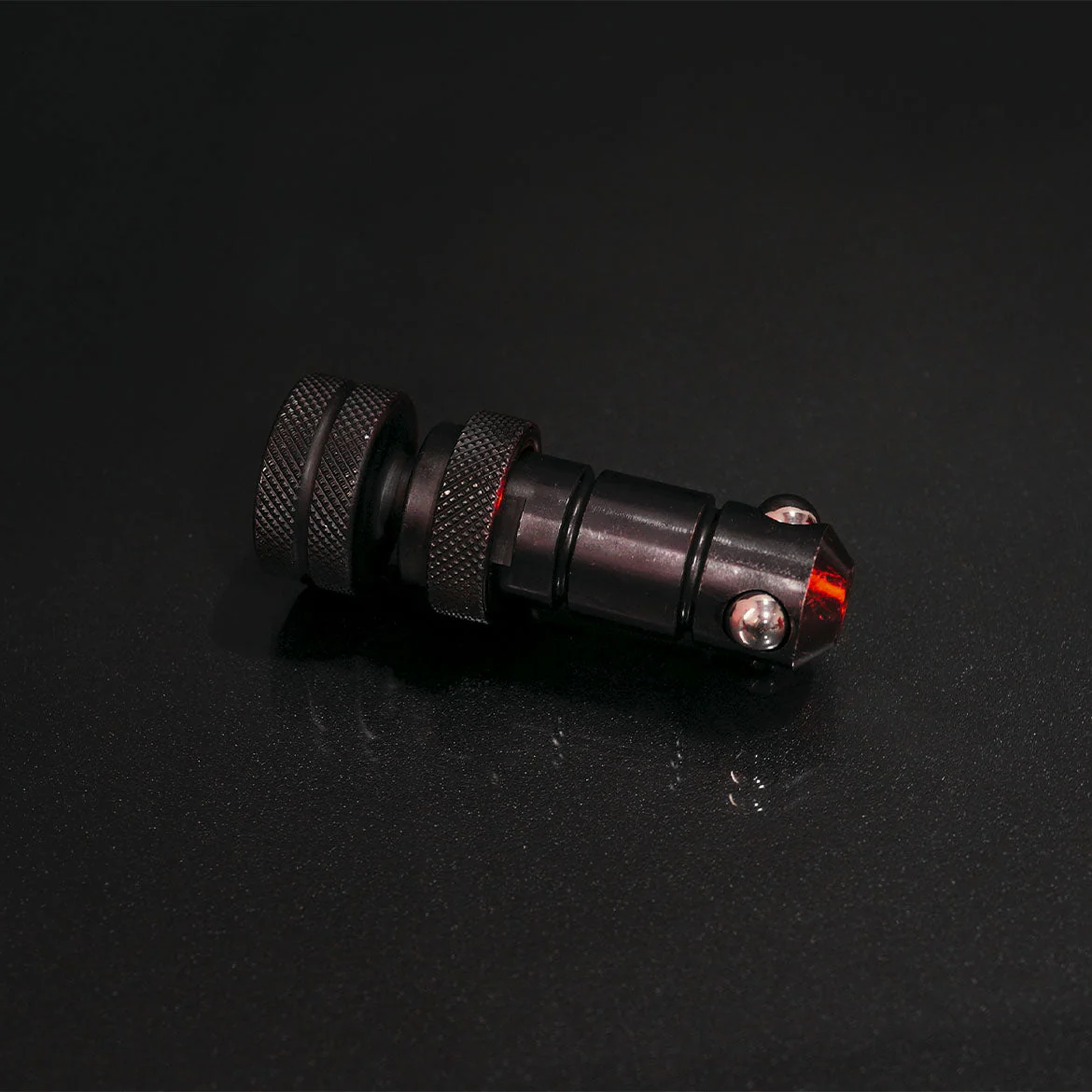

Product image 10
