The System 28 Welding Table Series was created with Heavy Duty Applications in Mind.
All System 28 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability.
The System 28 Welding Table Series was created with Heavy Duty Applications in Mind.
All System 28 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability.
Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.
- The materials used are fundamental to the high level of hardness and long service life.
- With a Siegmund® table, you will experience long-term savings, thanks to the high level of precision engineering, as well as the consistent superior quality.
- Side surface of Professional Extreme 8.7 is made of specific basic material S355J2+N incl. plasma nitriding and BAR-coating.
\n
\nSiegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.\n
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.\n
\n
\n
Specs and Features
of the System 28, 8.7 Imperial Series Welding Tables
\n \n
Specs & Features
of the System 28, 8.7 Imperial Series
Welding Tables
\n
\n
Welding Table Specs and Features:

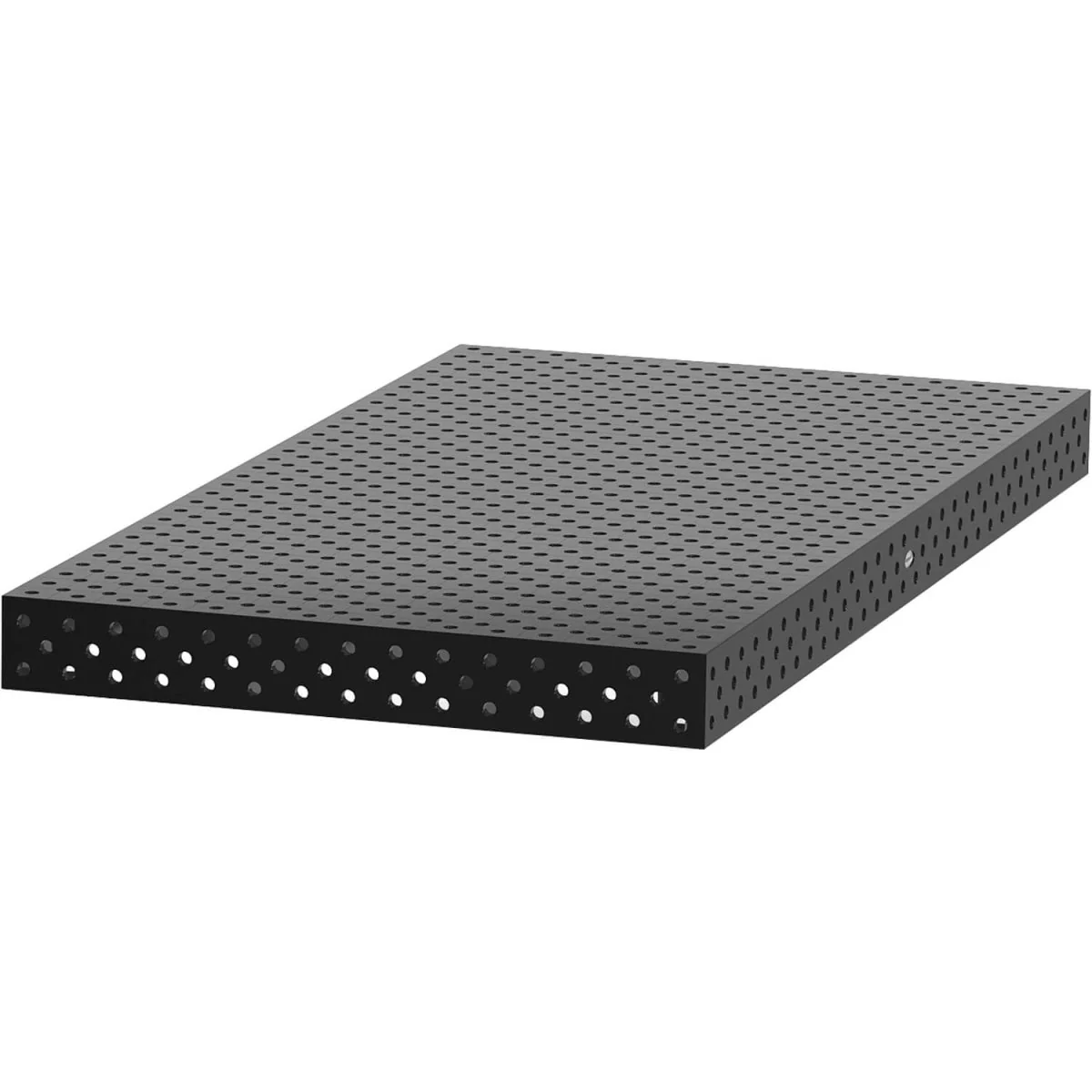

- \nOverall Tabletop Size: 5' x 10' (60\" x 120\")
- \nBorehole Diameter: Ø 28mm (1-1/10\")
- \nWelding Table Series: Professional Extreme 8.7 Series
- \nWelding Table Material Thickness: Approx. 15/16\" to 1-1/16\"
- \nWelding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
- \nTable Surface Hardness: 450-850 Vickers
- \nOfficial Siegmund Welding Table Part No.: US280040.XD7
- \nMaximum Weight Load: 14,440 lbs. (Based on Even Distribution)
- \nApproximate Table Weight: 3,290 lbs.

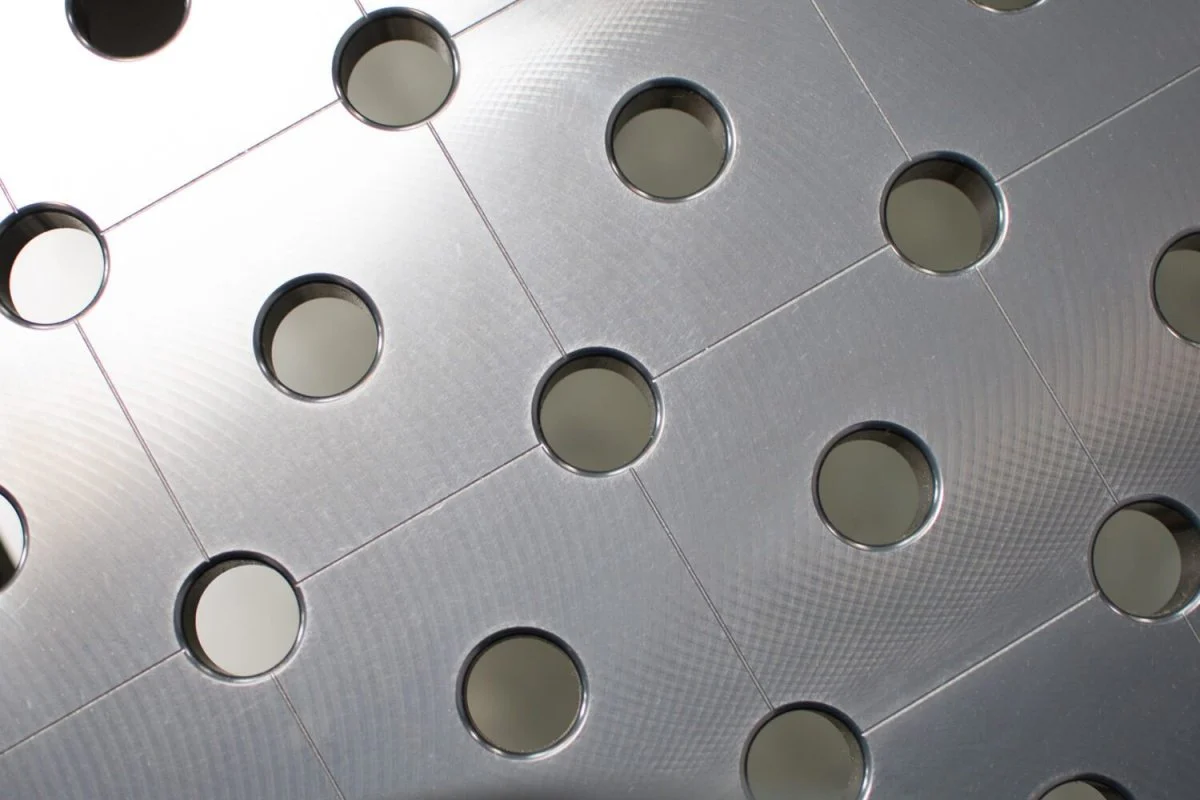

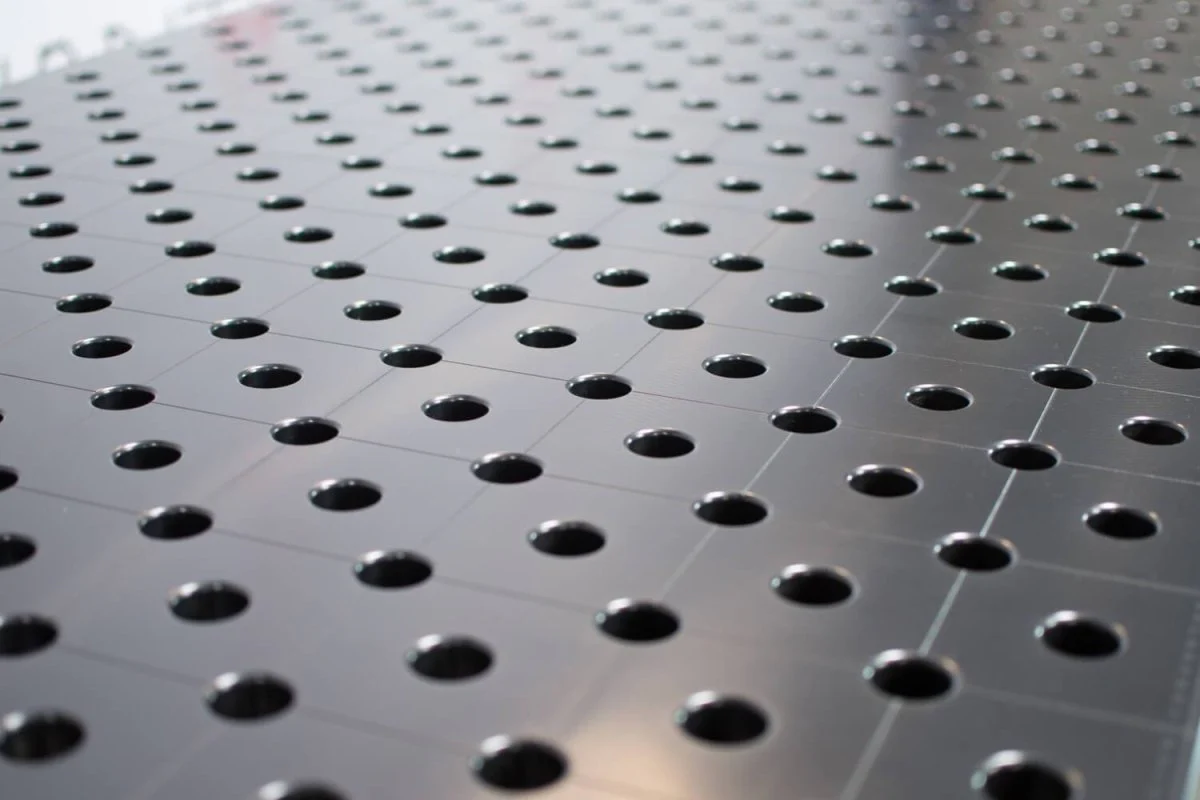

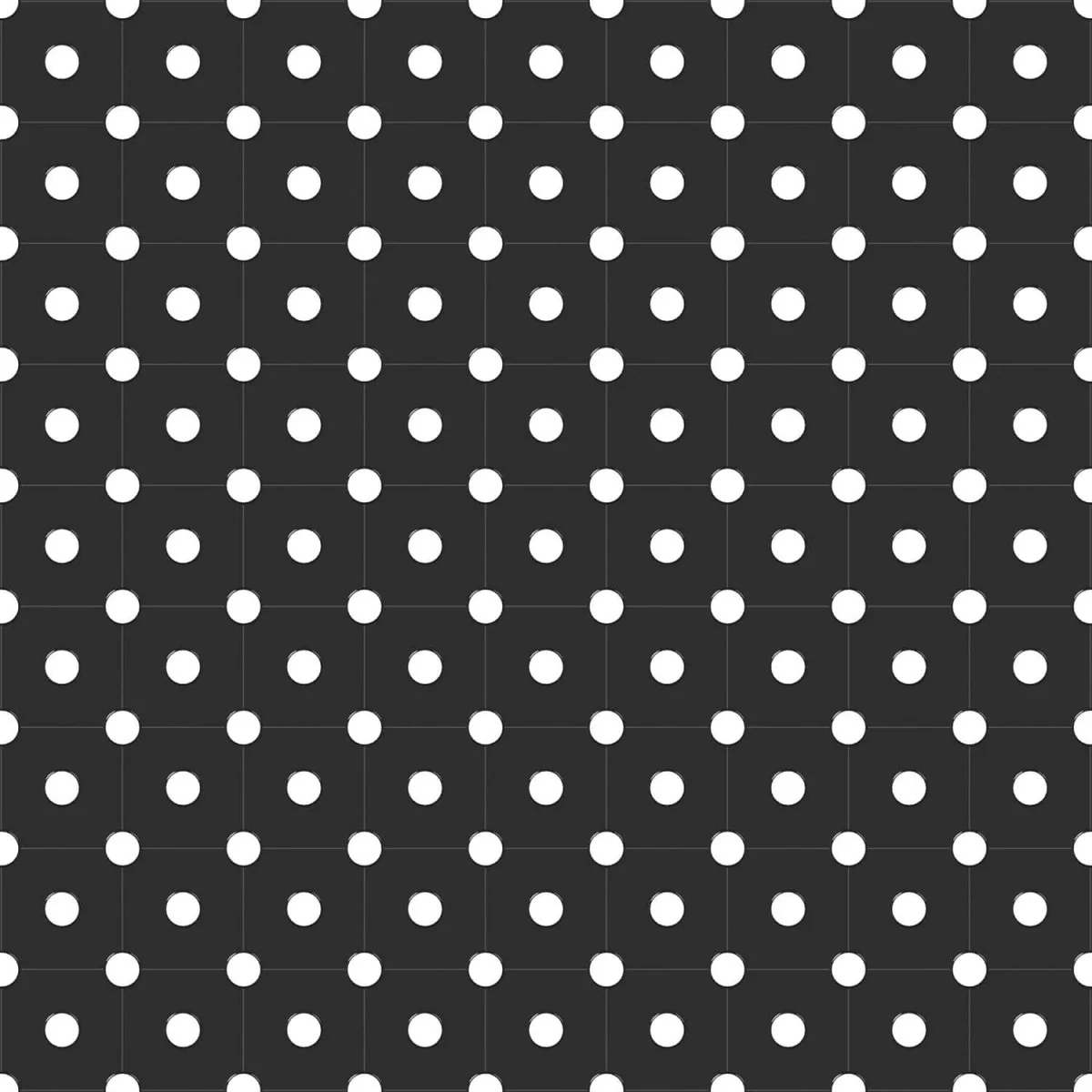

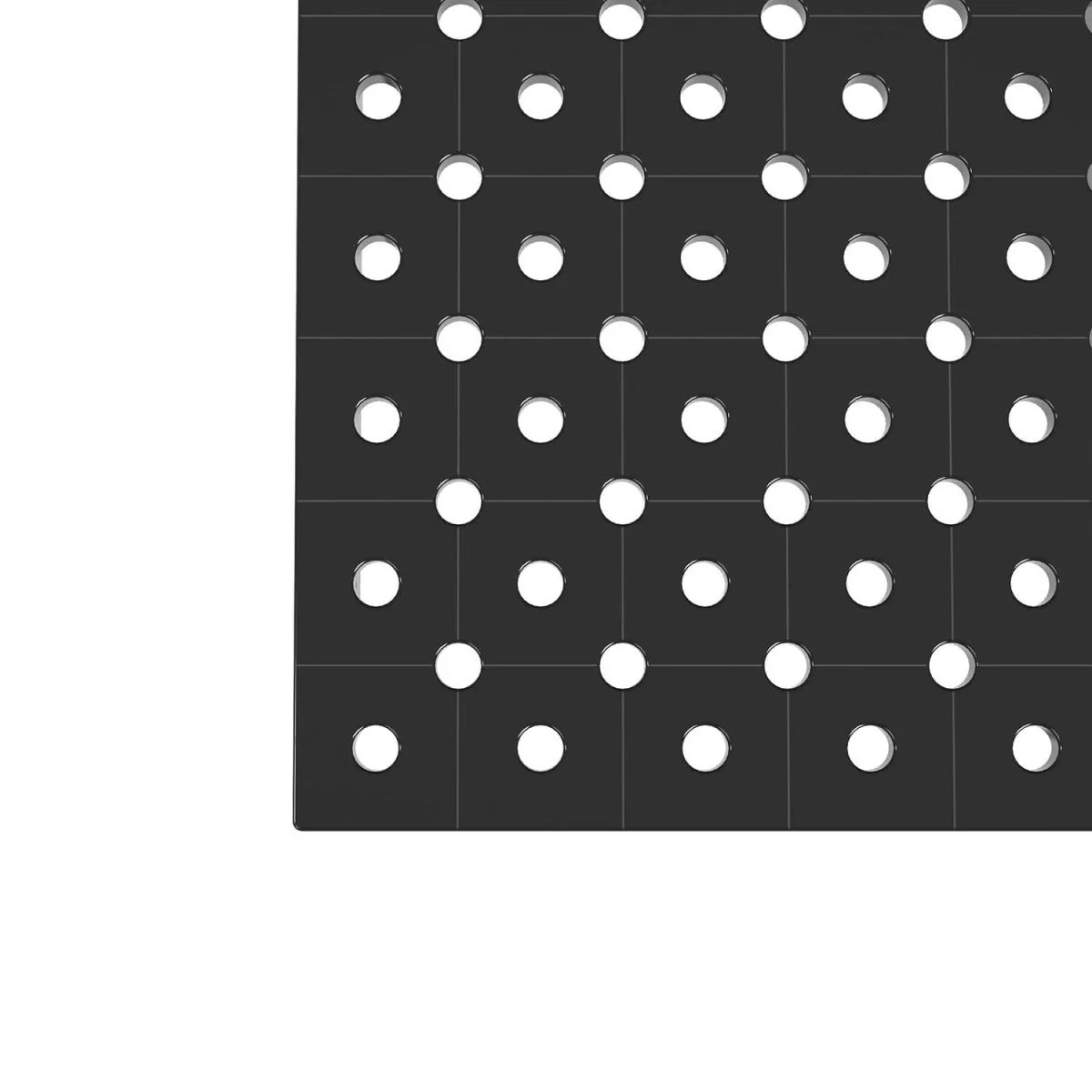

- Boreholes on the Surface are in a Diagonal Grid Configuration.
- Boreholes have a diameter of 28mm (1-1/10\"), Boreholes have a 1/10\" Radius.

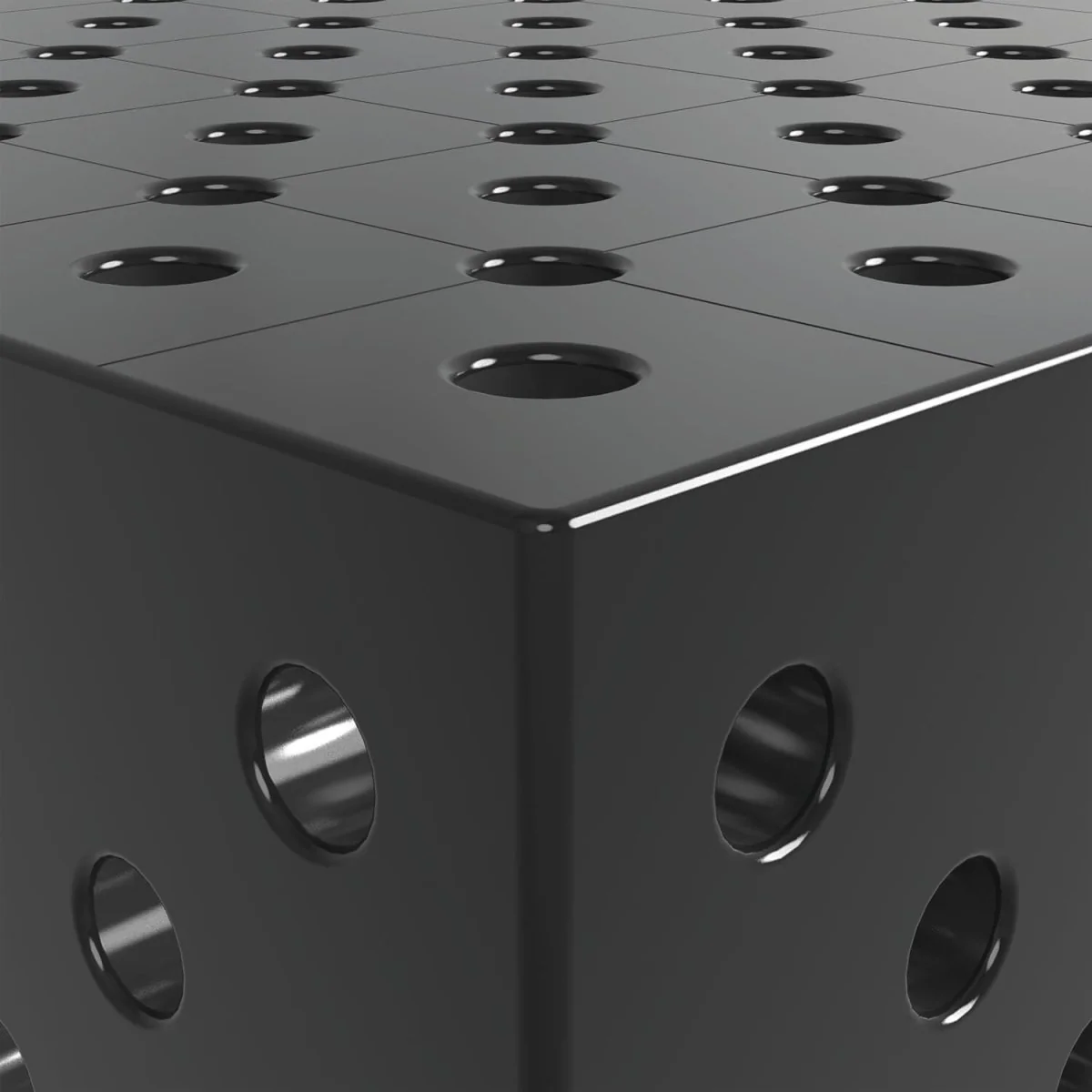

- Radius 1/10\" on the table edges and 1/4\" on the corners.
- Height of table side is 7-7/8\" - Borehole in Diagonal Grid.
- INCH Scale Engraved on the Surface.

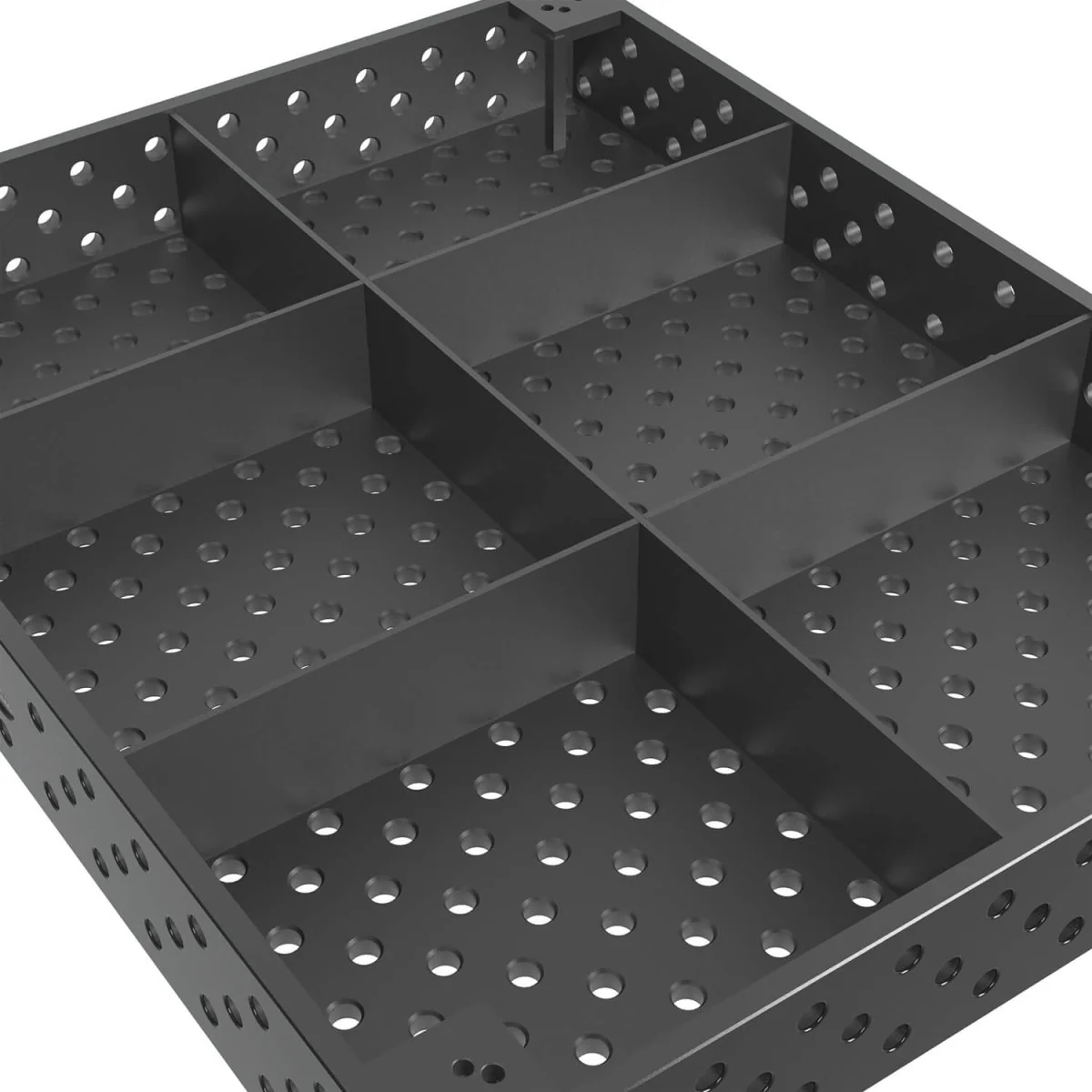

- Bottom of Structure has Reinforced Ribbing.
\n
\n
Welding Table Leg Options
Part Numbers, Specs and Pricing
\n \n
Welding Table Leg Options
Part Numbers, Specs and Pricing
Siegmund Welding Table Leg Options Chart
| Leg Type | Item No. | Capacity Per Leg | Leg Height | Table Height | Cost Per Leg |
| 1. Standard Leg | US280858.X | 4,400 lbs. | 28\" | 36\" | Included |
| 2. Height Adjustable Leg | US280877.XX | 4,400 lbs. | 22\"-36\" | 30\"-44\" | $147 |
| 3. Leg with Casters and | US280876.XX | 1,760 lbs. | 36\" | 36\" | $186 |
| 4. Height Adjustable Leg | US280879.XX | 1,760 lbs. | 22\"-30\" | 30\"-38\" | $241 |
Siegmund System 28 Welding Table Leg Options - Full Specifications
\n
\n

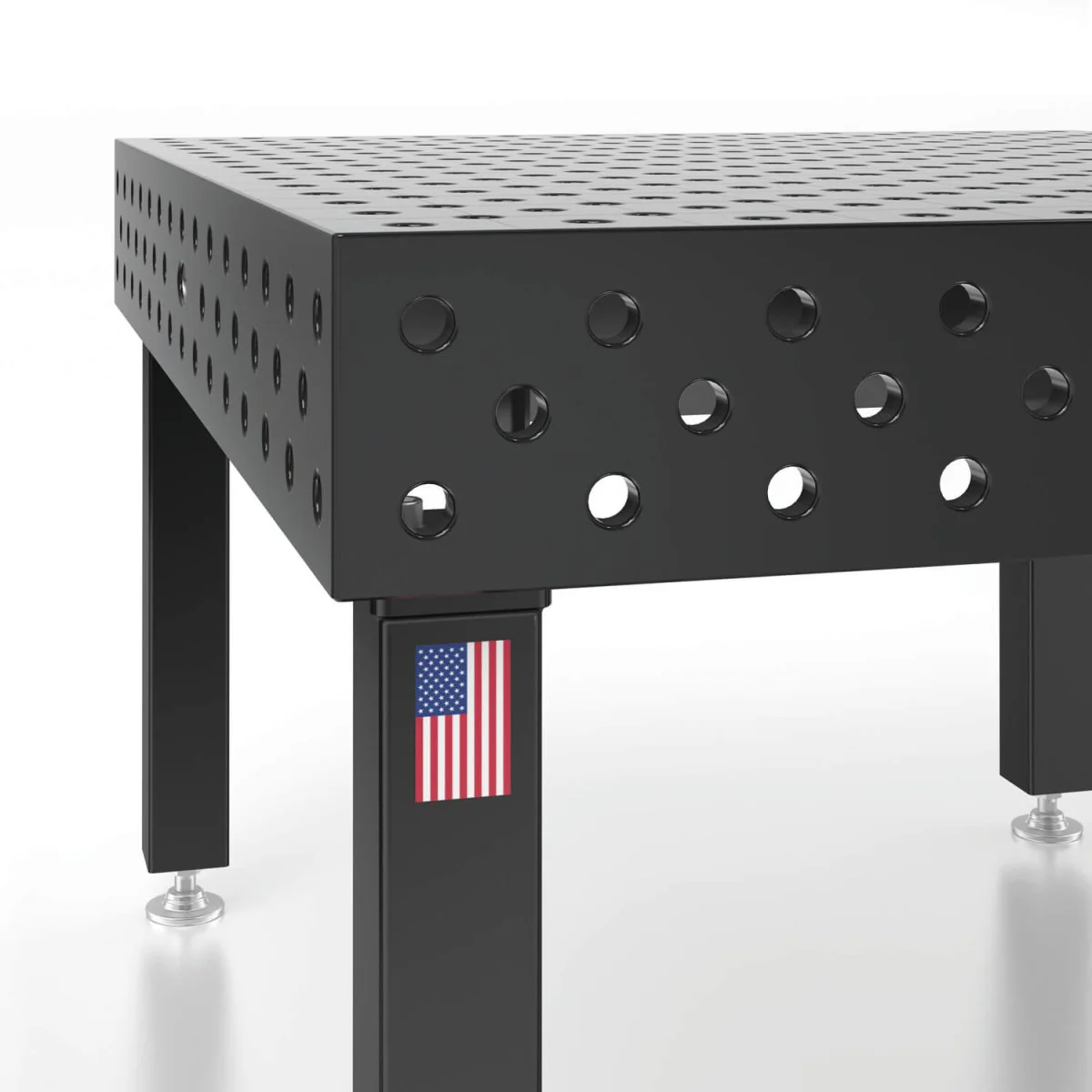

1. Standard Siegmund Leg(s)
- \nItem No.: US280858.X
- \nLeg Height: 28\"
- \nTable Height: 36\"

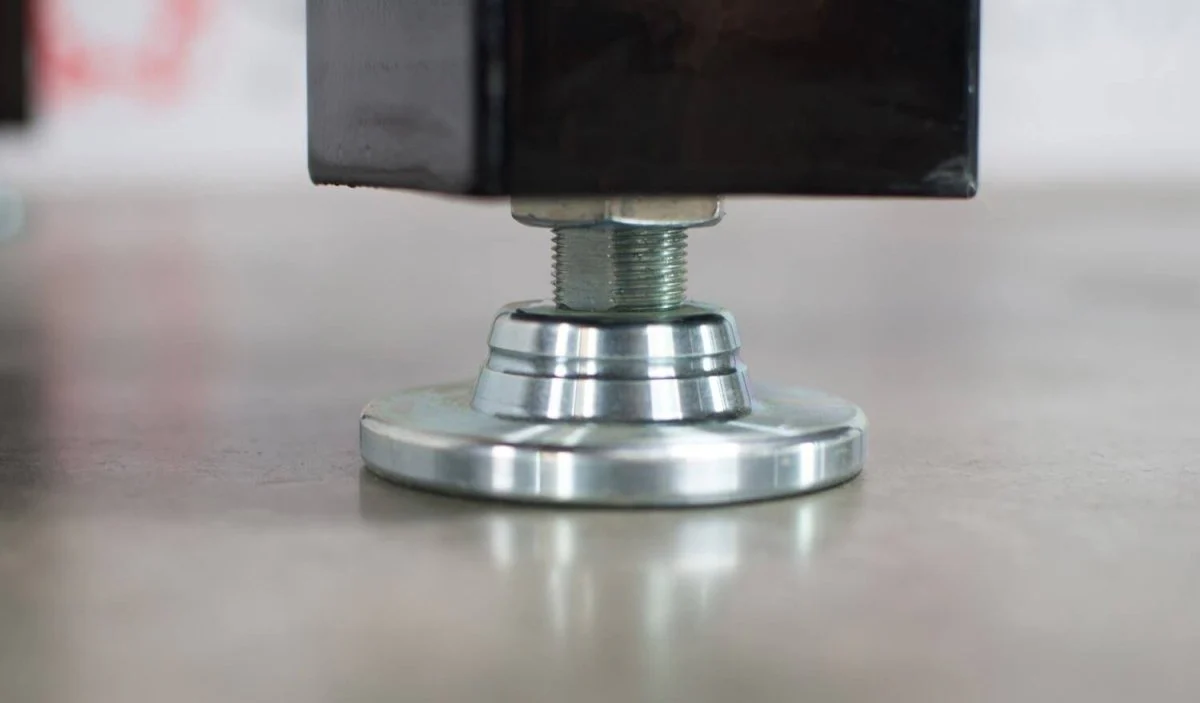

- \nFine Adjustment: 2\"
- \nCapacity Per Table Leg: 4,400 lbs.
- \nCost Per Leg: $0 (Included with Welding Table as a Standard)
- \nCost Per 6 Leg Set: $0 (Included with Welding Table as a Standard)
\n
\n
2. Height Adjustable Siegmund Leg(s)
- \nItem No.: US280877.XX
- \nLeg Height (Adjustable): 22\" - 36\"
- \nTable Height (Adjustable): 30\" - 44\"
- \nFine Adjustment: 2\"
- \nCapacity Per Table Leg: 4,400 lbs.
- \nCost Per Leg: $147
- \nCost Per 6 Leg Set: $882
\n
\n
3. Siegmund Leg(s) with Casters and Locking Brakes
- \nItem No.: US280876.XX
- \nLeg Height: 28\"
- \nTable Height: 36\"
- \nFine Adjustment: 13/16\"
- \nCapacity Per Table Leg: 1,760 lbs.
- \nCost Per Leg: $186
- \nCost Per 6 Leg Set: $1,116
\n
\n
4. Height Adjustable Leg(s) with Casters and Locking Brakes
- \nItem No.: US280879.XX
- \nLeg Height (Adjustable): 22\" - 30\"
- \nTable Height (Adjustable): 30\" - 38\"
- \nFine Adjustment: 13/16\"
- \nCapacity Per Table Leg: 1,760 lbs.
- \nCost Per Leg: $241
- \nCost Per 6 Leg Set: $1,446
\n
\n
System 28 Accessory Sets
The Most Popular Siegmund Accessory Bundles
\n \n
System 28
Imperial Series Accessory Sets
The Most Popular Siegmund Accessory Bundles
Sold out
Sold out
Sold out
Sold out
Sold out
\n
\n
Featured Siegmund Videos
of the System 28 Welding Tables
\n \n
Featured Siegmund Videos
of the System 28 Welding Tables
\n Impact Test Standard Weld Table vs Siegmund Weld Table
Impact Test Standard Weld Table vs Siegmund Weld Table
\n
Why Our Welding Tables are Plasma Nitrided
\n
The Strength of a Siegmund Welding Table
\n \"You Can Produce Everything...\"
\"You Can Produce Everything...\"
\n
\n
This Month's
Featured Siegmund Welders
\n \n
This Month's
Featured Siegmund Welders
Greg from Red Beard's Garage
Red Beard’s Garage is world famous and has over 430,000+ Youtube Subscribers!
Red Beard (Greg) and his team builds all types of Go-Karts and definitely have a blast doing it - so be sure to follow their channel on Youtube. Red Beard’s Garage solely trusts Quantum Machinery and Siegmund to supply and support all of their Welding Table and Fixturing needs!
(There is bound to be something that will “tickle your fancy”! )
\n
\n
Jeff Lutz (Lutz Race Cars) from Street Outlaws
Jeff Lutz (Lutzs Race Cars) from Street Outlaws is world famous and has over 580,000+ Instagram Followers and over 583,000+ Facebook Fans and is currently filming with his Siegmund table on the Discover Channel! When he received his Siegmund Welding Table and Accessories from us, he had nothing but the best things to say, \"Wow it is amazing!\" and after spending a few weeks with it, Jeff wrote on his instagram that his Siegmund Welding Table makes fixturing everything so much easier for him and his team!
Here is a video of Jeff Lutz in a drag race, for your own entertainment!
\n
\n
Contact a Siegmund Expert
Feel free to contact us today to place an order or let us know
if you have any questions about any Siegmund's Products.
\n
\n
Contact a Siegmund Expert
Feel free to contact us today to place an order or let us know if you have any questions about any Siegmund's Products.
\nContact our team of Factory Trained, In-House Siegmund U.S.A. Experts for all of your Siegmund Inquiries and questions! You can also place your order online or over the phone.
Phone: (909)476-8007
Email: [email protected]
Contact our team of Factory Trained, In-House Siegmund U.S.A. Experts for all of your Siegmund Inquiries and questions! You can also place your order online or over the phone.
Phone: (704)703-9400 Email: [email protected]
If you would like for us to contact you, simply fill out the form below and one of our Siegmund Experts will be in contact with you shortly.
Thanks!
This field is required
This field is required
This field is required
This field is required
This field is required
This field is required
HomeStore
US280040.XD7: System 28 5'x10' (60"x120") Siegmund Imperial Series (Inch) Welding Table with Plasma Nitration
US280040.XD7: System 28 5'x10' (60"x120") Siegmund Imperial Series (Inch) Welding Table with Plasma Nitration
The System 28 Welding Table Series was created with Heavy Duty Applications in Mind.
All System 28 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability.
Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.
Siegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.
Specs and Features
of the System 28, 8.7 Imperial Series Welding Tables
Specs & Features
of the System 28, 8.7 Imperial Series
Welding Tables
Welding Table Specs and Features:
- Overall Tabletop Size: 5' x 10' (60" x 120")
- Borehole Diameter: Ø 28mm (1-1/10")
- Welding Table Series: Professional Extreme 8.7 Series
- Welding Table Material Thickness: Approx. 15/16" to 1-1/16"
- Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
- Table Surface Hardness: 450-850 Vickers
- Official Siegmund Welding Table Part No.: US280040.XD7
- Maximum Weight Load: 14,440 lbs. (Based on Even Distribution)
- Approximate Table Weight: 3,290 lbs.
- Boreholes on the Surface are in a Diagonal Grid Configuration.
- Boreholes have a diameter of 28mm (1-1/10"), Boreholes have a 1/10" Radius.
- Radius 1/10" on the table edges and 1/4" on the corners.
- Height of table side is 7-7/8" - Borehole in Diagonal Grid.
- INCH Scale Engraved on the Surface.
- Bottom of Structure has Reinforced Ribbing.
Welding Table Leg Options
Part Numbers, Specs and Pricing
Welding Table Leg Options
Part Numbers, Specs and Pricing
Siegmund Welding Table Leg Options Chart
| Leg Type | Item No. | Capacity Per Leg | Leg Height | Table Height | Cost Per Leg |
| 1. Standard Leg | US280858.X | 4,400 lbs. | 28" | 36" | Included |
| 2. Height Adjustable Leg | US280877.XX | 4,400 lbs. | 22"-36" | 30"-44" | $147 |
| 3. Leg with Casters and | US280876.XX | 1,760 lbs. | 36" | 36" | $186 |
| 4. Height Adjustable Leg | US280879.XX | 1,760 lbs. | 22"-30" | 30"-38" | $241 |
Siegmund System 28 Welding Table Leg Options - Full Specifications
1. Standard Siegmund Leg(s)
- Item No.: US280858.X
- Leg Height: 28"
- Table Height: 36"
- Fine Adjustment: 2"
- Capacity Per Table Leg: 4,400 lbs.
- Cost Per Leg: $0 (Included with Welding Table as a Standard)
- Cost Per 6 Leg Set: $0 (Included with Welding Table as a Standard)
2. Height Adjustable Siegmund Leg(s)
- Item No.: US280877.XX
- Leg Height (Adjustable): 22" - 36"
- Table Height (Adjustable): 30" - 44"
- Fine Adjustment: 2"
- Capacity Per Table Leg: 4,400 lbs.
- Cost Per Leg: $147
- Cost Per 6 Leg Set: $882
3. Siegmund Leg(s) with Casters and Locking Brakes
- Item No.: US280876.XX
- Leg Height: 28"
- Table Height: 36"
- Fine Adjustment: 13/16"
- Capacity Per Table Leg: 1,760 lbs.
- Cost Per Leg: $186
- Cost Per 6 Leg Set: $1,116
4. Height Adjustable Leg(s) with Casters and Locking Brakes
- Item No.: US280879.XX
- Leg Height (Adjustable): 22" - 30"
- Table Height (Adjustable): 30" - 38"
- Fine Adjustment: 13/16"
- Capacity Per Table Leg: 1,760 lbs.
- Cost Per Leg: $241
- Cost Per 6 Leg Set: $1,446
System 28 Accessory Sets
The Most Popular Siegmund Accessory Bundles
System 28
Imperial Series Accessory Sets
The Most Popular Siegmund Accessory Bundles
Sold out
Sold out
Sold out
Sold out
Sold out
Featured Siegmund Videos
of the System 28 Welding Tables
Featured Siegmund Videos
of the System 28 Welding Tables
Impact Test Standard Weld Table vs Siegmund Weld Table
Why Our Welding Tables are Plasma Nitrided
The Strength of a Siegmund Welding Table
"You Can Produce Everything..."
This Month's
Featured Siegmund Welders
This Month's
Featured Siegmund Welders
Greg from Red Beard's Garage
Red Beard’s Garage is world famous and has over 430,000+ Youtube Subscribers!
Red Beard (Greg) and his team builds all types of Go-Karts and definitely have a blast doing it - so be sure to follow their channel on Youtube. Red Beard’s Garage solely trusts Quantum Machinery and Siegmund to supply and support all of their Welding Table and Fixturing needs!
(There is bound to be something that will “tickle your fancy”! )
Jeff Lutz (Lutz Race Cars) from Street Outlaws
Jeff Lutz (Lutzs Race Cars) from Street Outlaws is world famous and has over 580,000+ Instagram Followers and over 583,000+ Facebook Fans and is currently filming with his Siegmund table on the Discover Channel! When he received his Siegmund Welding Table and Accessories from us, he had nothing but the best things to say, "Wow it is amazing!" and after spending a few weeks with it, Jeff wrote on his instagram that his Siegmund Welding Table makes fixturing everything so much easier for him and his team!
Here is a video of Jeff Lutz in a drag race, for your own entertainment!
Contact a Siegmund Expert
Feel free to contact us today to place an order or let us know
if you have any questions about any Siegmund's Products.
Contact a Siegmund Expert
Feel free to contact us today to place an order or let us know if you have any questions about any Siegmund's Products.
Contact our team of Factory Trained, In-House Siegmund U.S.A. Experts for all of your Siegmund Inquiries and questions! You can also place your order online or over the phone.
Phone: (909)476-8007
Email: [email protected]
Contact our team of Factory Trained, In-House Siegmund U.S.A. Experts for all of your Siegmund Inquiries and questions! You can also place your order online or over the phone.
Phone: (704)703-9400 Email: [email protected]
If you would like for us to contact you, simply fill out the form below and one of our Siegmund Experts will be in contact with you shortly.
Thanks!
This field is required
This field is required
This field is required
This field is required
This field is required
This field is required
Select Table Legs
From $16,682.00
US280040.XD7: System 28 5'x10' (60"x120") Siegmund Imperial Series (Inch) Welding Table with Plasma Nitration—
$16,682.00
Description
The System 28 Welding Table Series was created with Heavy Duty Applications in Mind.
All System 28 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability.
Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.
- The materials used are fundamental to the high level of hardness and long service life.
- With a Siegmund® table, you will experience long-term savings, thanks to the high level of precision engineering, as well as the consistent superior quality.
- Side surface of Professional Extreme 8.7 is made of specific basic material S355J2+N incl. plasma nitriding and BAR-coating.
Siegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.
Specs and Features
of the System 28, 8.7 Imperial Series Welding Tables
Specs & Features
of the System 28, 8.7 Imperial Series
Welding Tables
Welding Table Specs and Features:
- Overall Tabletop Size: 5' x 10' (60" x 120")
- Borehole Diameter: Ø 28mm (1-1/10")
- Welding Table Series: Professional Extreme 8.7 Series
- Welding Table Material Thickness: Approx. 15/16" to 1-1/16"
- Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
- Table Surface Hardness: 450-850 Vickers
- Official Siegmund Welding Table Part No.: US280040.XD7
- Maximum Weight Load: 14,440 lbs. (Based on Even Distribution)
- Approximate Table Weight: 3,290 lbs.

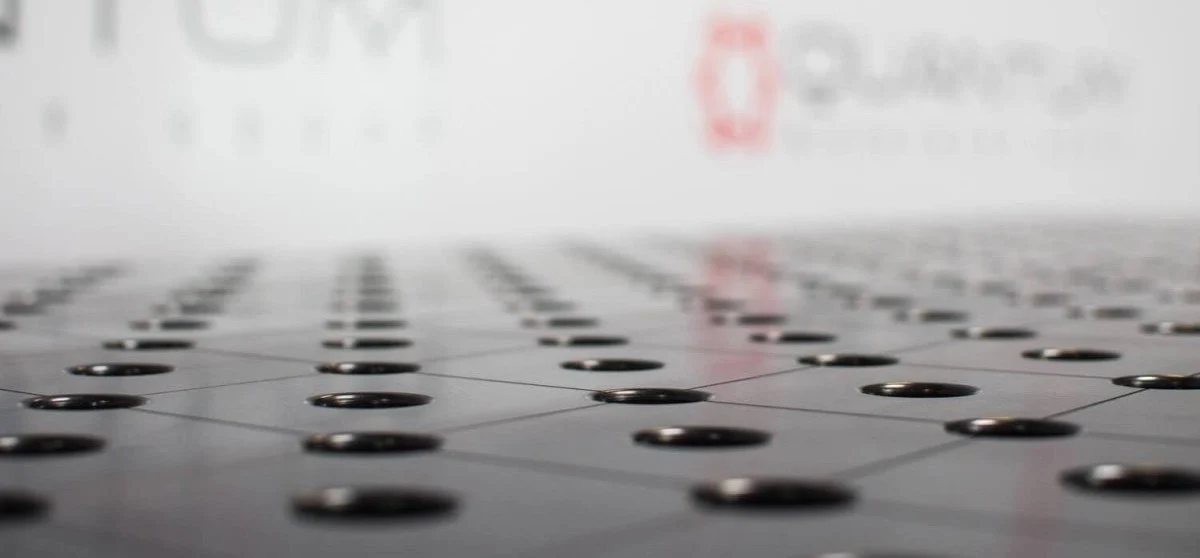

- Boreholes on the Surface are in a Diagonal Grid Configuration.
- Boreholes have a diameter of 28mm (1-1/10"), Boreholes have a 1/10" Radius.
- Radius 1/10" on the table edges and 1/4" on the corners.
- Height of table side is 7-7/8" - Borehole in Diagonal Grid.
- INCH Scale Engraved on the Surface.
- Bottom of Structure has Reinforced Ribbing.
Welding Table Leg Options
Part Numbers, Specs and Pricing
Welding Table Leg Options
Part Numbers, Specs and Pricing
Siegmund Welding Table Leg Options Chart
| Leg Type | Item No. | Capacity Per Leg | Leg Height | Table Height | Cost Per Leg |
| 1. Standard Leg | US280858.X | 4,400 lbs. | 28" | 36" | Included |
| 2. Height Adjustable Leg | US280877.XX | 4,400 lbs. | 22"-36" | 30"-44" | $147 |
| 3. Leg with Casters and | US280876.XX | 1,760 lbs. | 36" | 36" | $186 |
| 4. Height Adjustable Leg | US280879.XX | 1,760 lbs. | 22"-30" | 30"-38" | $241 |
Siegmund System 28 Welding Table Leg Options - Full Specifications
1. Standard Siegmund Leg(s)
- Item No.: US280858.X
- Leg Height: 28"
- Table Height: 36"
- Fine Adjustment: 2"
- Capacity Per Table Leg: 4,400 lbs.
- Cost Per Leg: $0 (Included with Welding Table as a Standard)
- Cost Per 6 Leg Set: $0 (Included with Welding Table as a Standard)
2. Height Adjustable Siegmund Leg(s)
- Item No.: US280877.XX
- Leg Height (Adjustable): 22" - 36"
- Table Height (Adjustable): 30" - 44"
- Fine Adjustment: 2"
- Capacity Per Table Leg: 4,400 lbs.
- Cost Per Leg: $147
- Cost Per 6 Leg Set: $882
3. Siegmund Leg(s) with Casters and Locking Brakes
- Item No.: US280876.XX
- Leg Height: 28"
- Table Height: 36"
- Fine Adjustment: 13/16"
- Capacity Per Table Leg: 1,760 lbs.
- Cost Per Leg: $186
- Cost Per 6 Leg Set: $1,116
4. Height Adjustable Leg(s) with Casters and Locking Brakes
- Item No.: US280879.XX
- Leg Height (Adjustable): 22" - 30"
- Table Height (Adjustable): 30" - 38"
- Fine Adjustment: 13/16"
- Capacity Per Table Leg: 1,760 lbs.
- Cost Per Leg: $241
- Cost Per 6 Leg Set: $1,446
System 28 Accessory Sets
The Most Popular Siegmund Accessory Bundles
System 28
Imperial Series Accessory Sets
The Most Popular Siegmund Accessory Bundles
Sold out
Sold out
Sold out
Sold out
Sold out
Featured Siegmund Videos
of the System 28 Welding Tables
Featured Siegmund Videos
of the System 28 Welding Tables
Impact Test Standard Weld Table vs Siegmund Weld Table
Why Our Welding Tables are Plasma Nitrided
The Strength of a Siegmund Welding Table
"You Can Produce Everything..."
This Month's
Featured Siegmund Welders
This Month's
Featured Siegmund Welders
Greg from Red Beard's Garage
Red Beard’s Garage is world famous and has over 430,000+ Youtube Subscribers!
Red Beard (Greg) and his team builds all types of Go-Karts and definitely have a blast doing it - so be sure to follow their channel on Youtube. Red Beard’s Garage solely trusts Quantum Machinery and Siegmund to supply and support all of their Welding Table and Fixturing needs!
(There is bound to be something that will “tickle your fancy”! )
Jeff Lutz (Lutz Race Cars) from Street Outlaws
Jeff Lutz (Lutzs Race Cars) from Street Outlaws is world famous and has over 580,000+ Instagram Followers and over 583,000+ Facebook Fans and is currently filming with his Siegmund table on the Discover Channel! When he received his Siegmund Welding Table and Accessories from us, he had nothing but the best things to say, "Wow it is amazing!" and after spending a few weeks with it, Jeff wrote on his instagram that his Siegmund Welding Table makes fixturing everything so much easier for him and his team!
Here is a video of Jeff Lutz in a drag race, for your own entertainment!
Contact a Siegmund Expert
Feel free to contact us today to place an order or let us know
if you have any questions about any Siegmund's Products.
Contact a Siegmund Expert
Feel free to contact us today to place an order or let us know if you have any questions about any Siegmund's Products.
Contact our team of Factory Trained, In-House Siegmund U.S.A. Experts for all of your Siegmund Inquiries and questions! You can also place your order online or over the phone.
Phone: (909)476-8007
Email: [email protected]
Contact our team of Factory Trained, In-House Siegmund U.S.A. Experts for all of your Siegmund Inquiries and questions! You can also place your order online or over the phone.
Phone: (704)703-9400 Email: [email protected]
If you would like for us to contact you, simply fill out the form below and one of our Siegmund Experts will be in contact with you shortly.
Thanks!
This field is required
This field is required
This field is required
This field is required
This field is required
This field is required
