US160025.X7
Quantity: 1

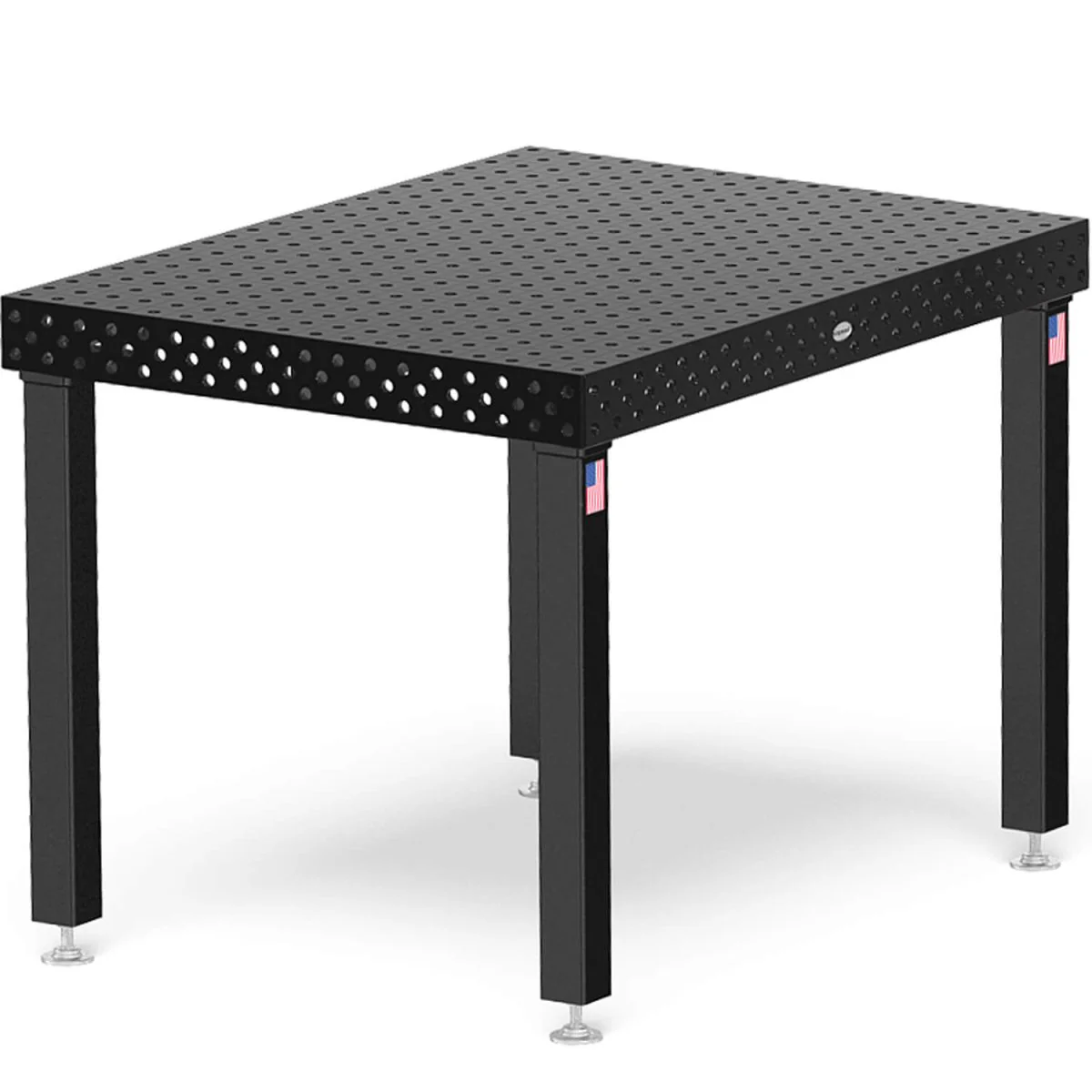

3'x4' Imperial Series Welding Table
(Plasma Nitrided)

\"\"

US160610.N
Quantity: 4

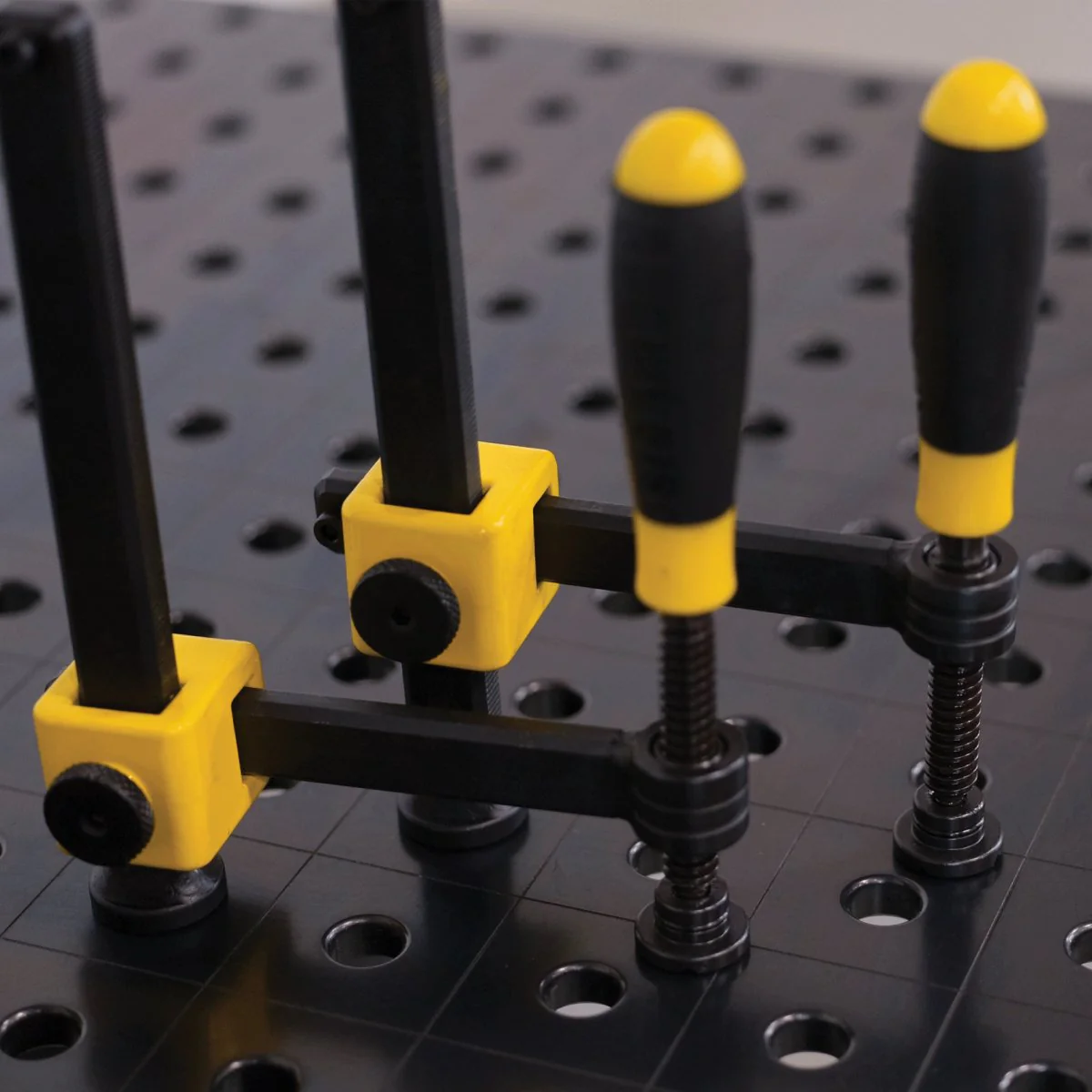

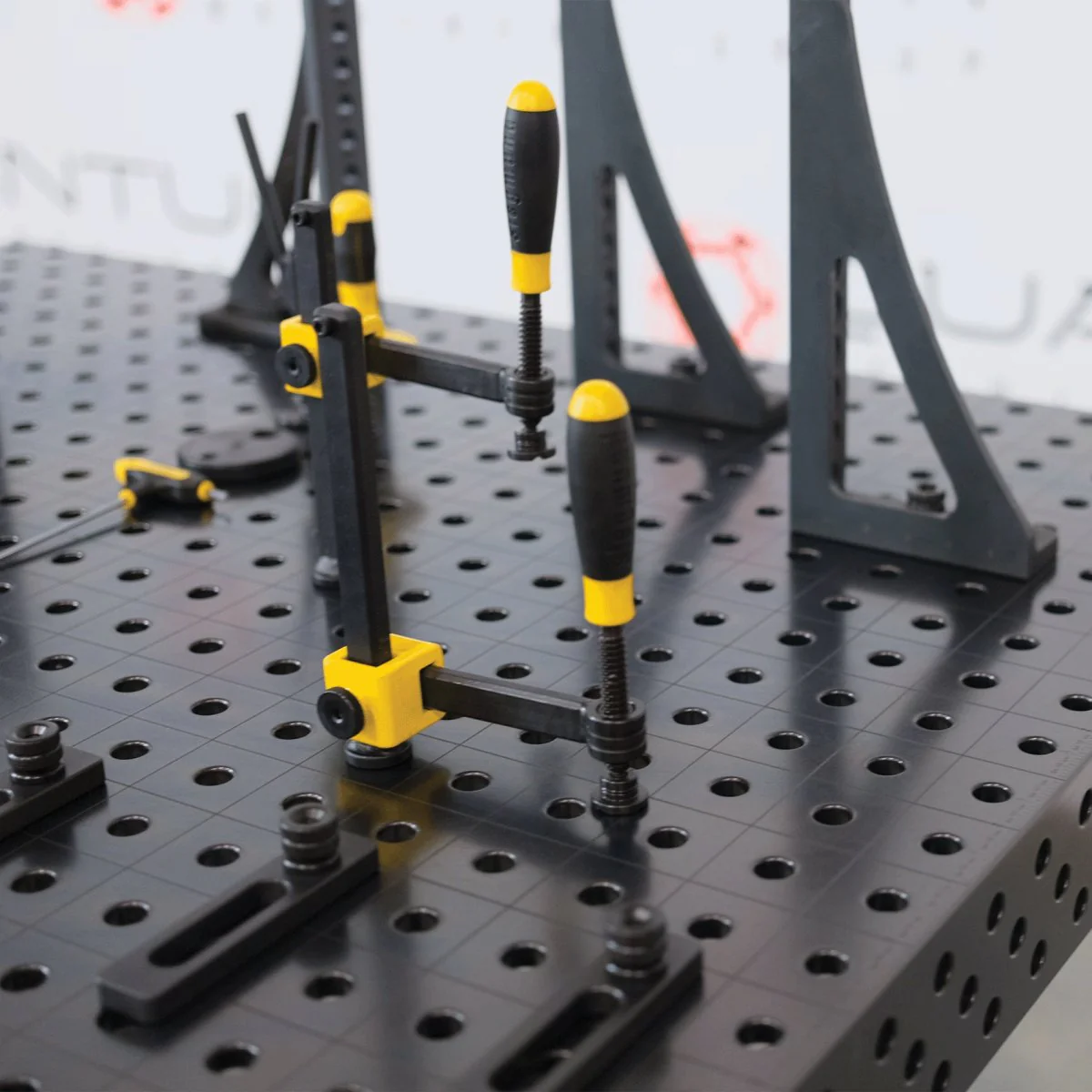

Professional Screw Clamp (Nitrided)

\"\"

US160511
Quantity: 12

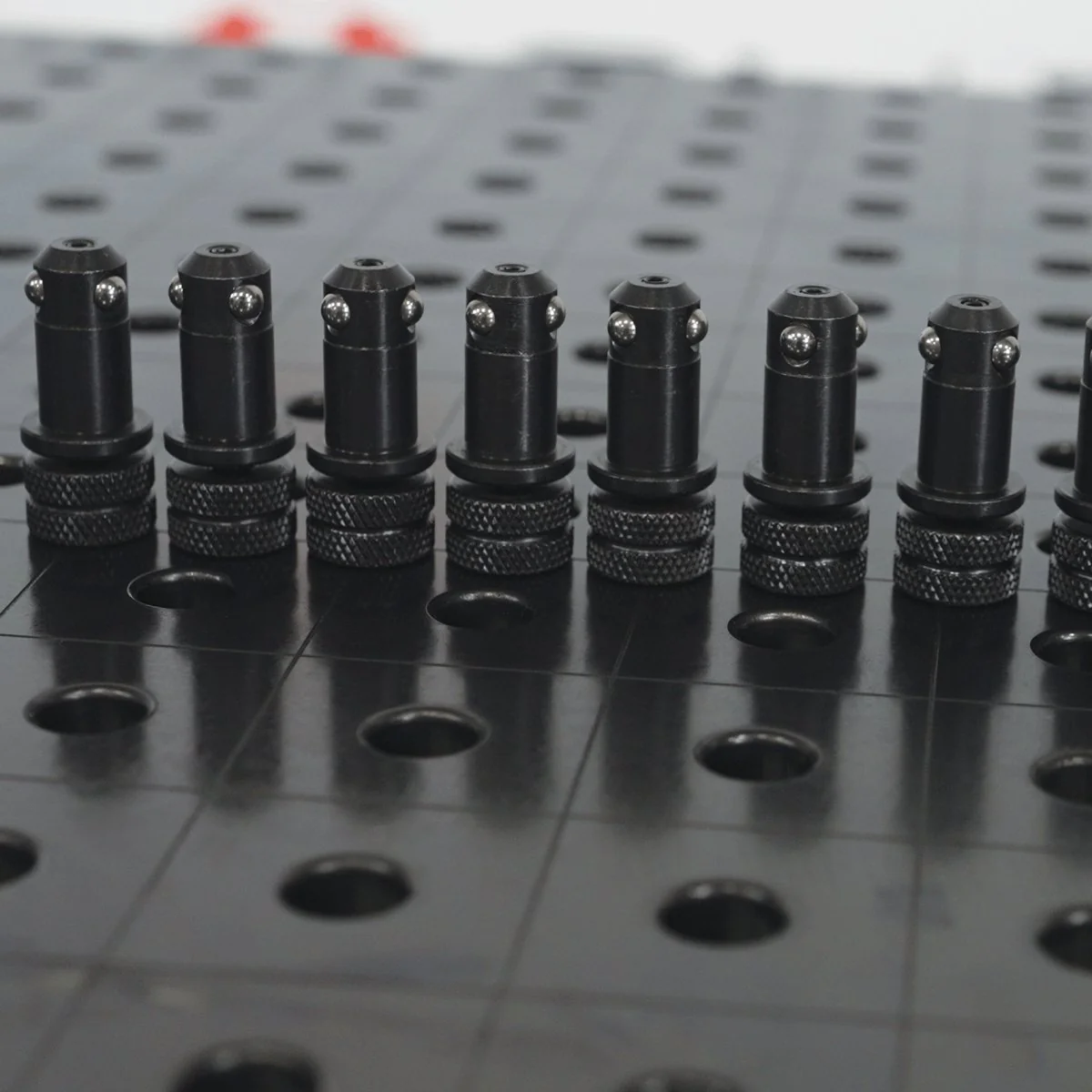

Short Fast Clamping Bolt (Burnished)

\"\"

US160420.N
Quantity: 8
5\" Universal Stop (Nitrided)

\"\"

US160162.N
Quantity: 4
12\" Stop and Clamping Square
(Nitrided)

\"\"

US163999
Quantity: 1
Maintenance Set

\"\"
\n
\nSiegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.\n
\"\"
\n
\n

Specs and Features

of the System 16, 8.7 Imperial Series
Welding Tables

\n
\n

Specs & Features
of the System 16, 8.7 Imperial Series
Welding Tables

\"\"
\n
\n

Welding Table Specs and Features:

  • \nOverall Tabletop Size: 3' x 4' (36\" x 48\")
  • \nBorehole Diameter: Ø 16mm (5/8\")
  • \nWelding Table Series: Professional Extreme 8.7 Series
  • \nWelding Table Material Thickness: Approx. 7/16\" to 1/2\"
  • \nWelding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
  • \nTable Surface Hardness: 450-850 Vickers
  • \nOfficial Siegmund Welding Table Part No.: US160025.X7
  • \nMaximum Weight Load: 5,195 lbs. (Based on Even Distribution)
  • \nApproximate Table Weight: 486 lbs.

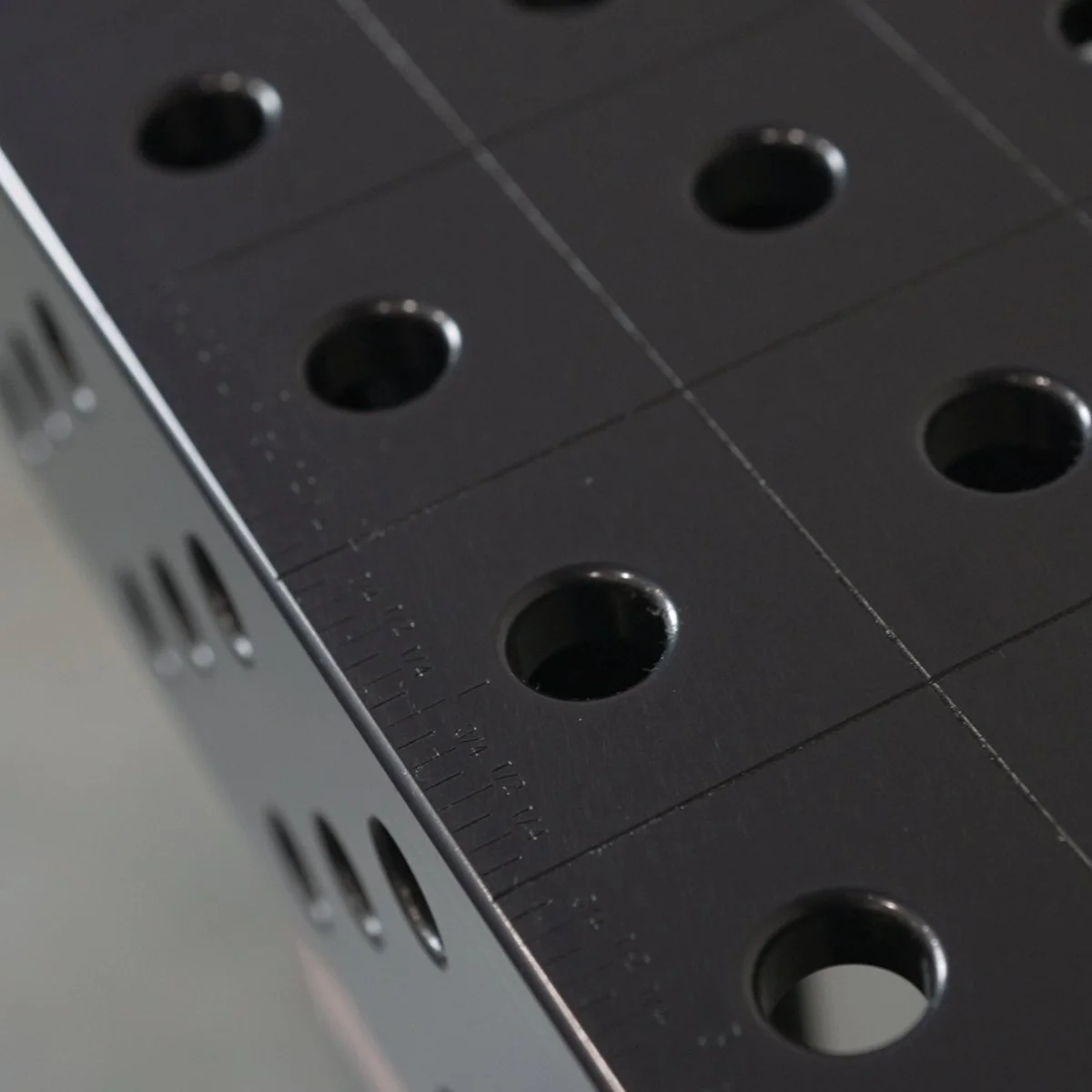

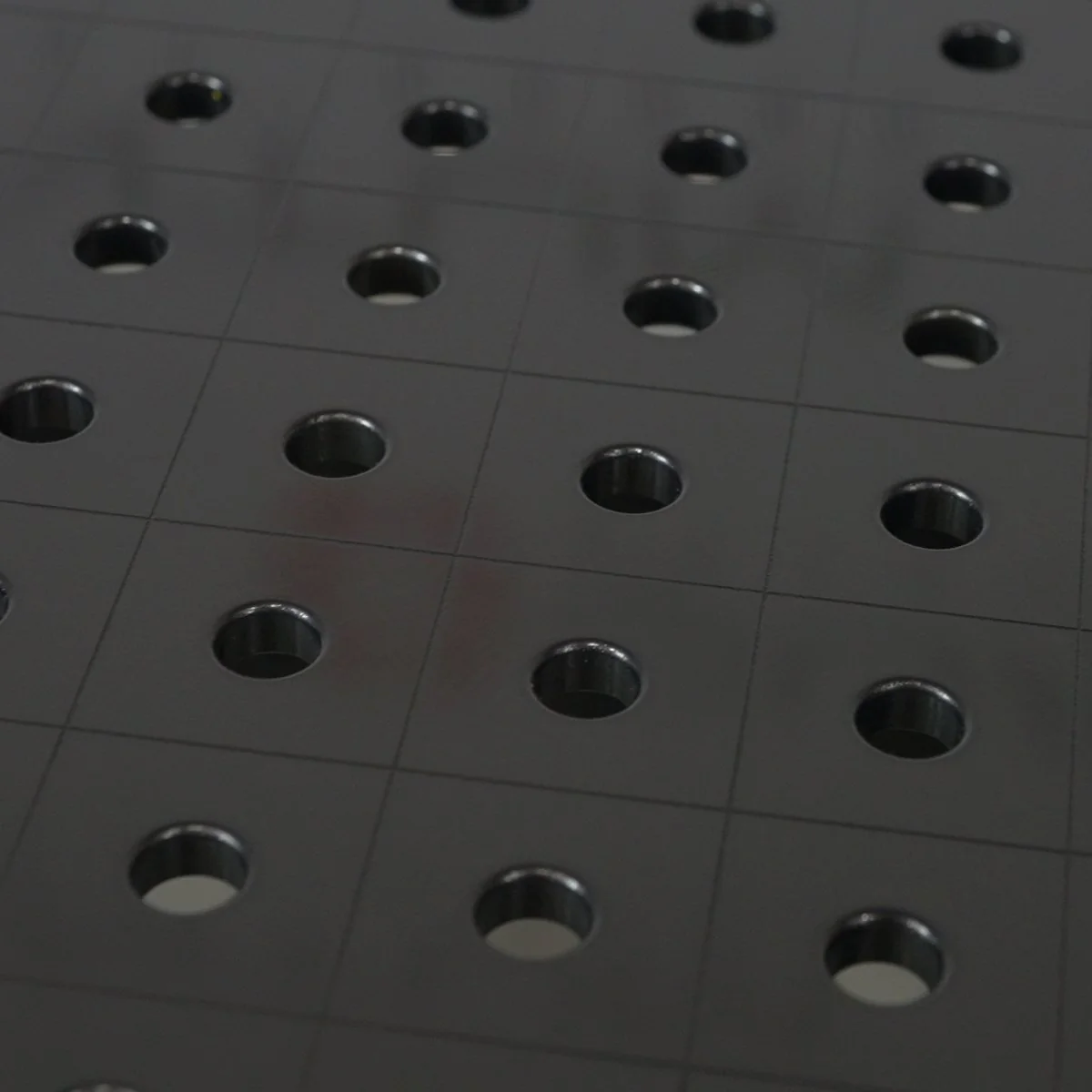

  1. Boreholes on the Surface are a 2\"x2\" Inch Grid Configuration.
  2. Boreholes have a diameter of 16mm (5/8\"), Boreholes have a 1/16\" Radius.
  3. Radius 1/10\" on the table edges and 1/4\" on the corners.
  4. Height of table side is 3-5/16\" - Borehole in Diagonal Grid.

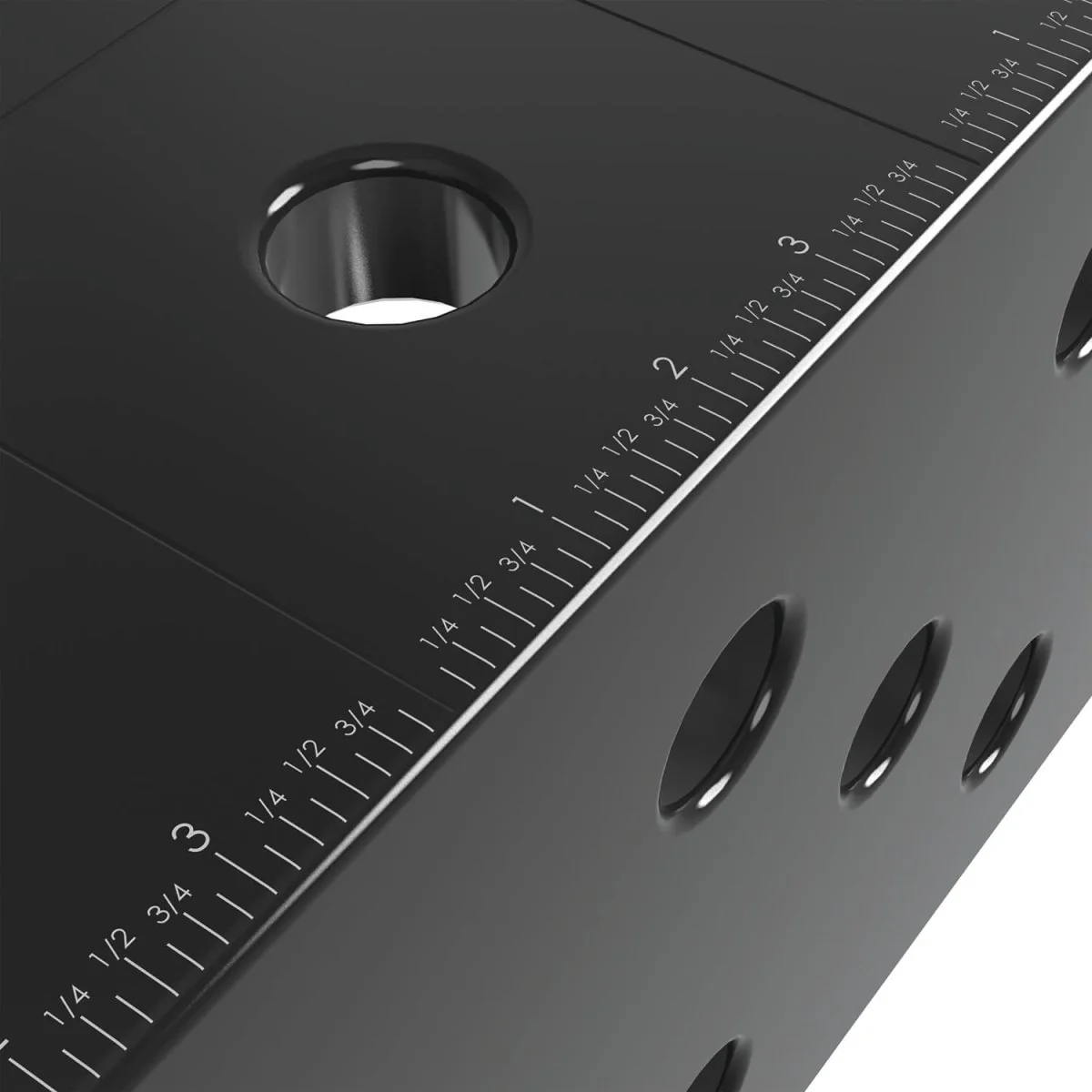

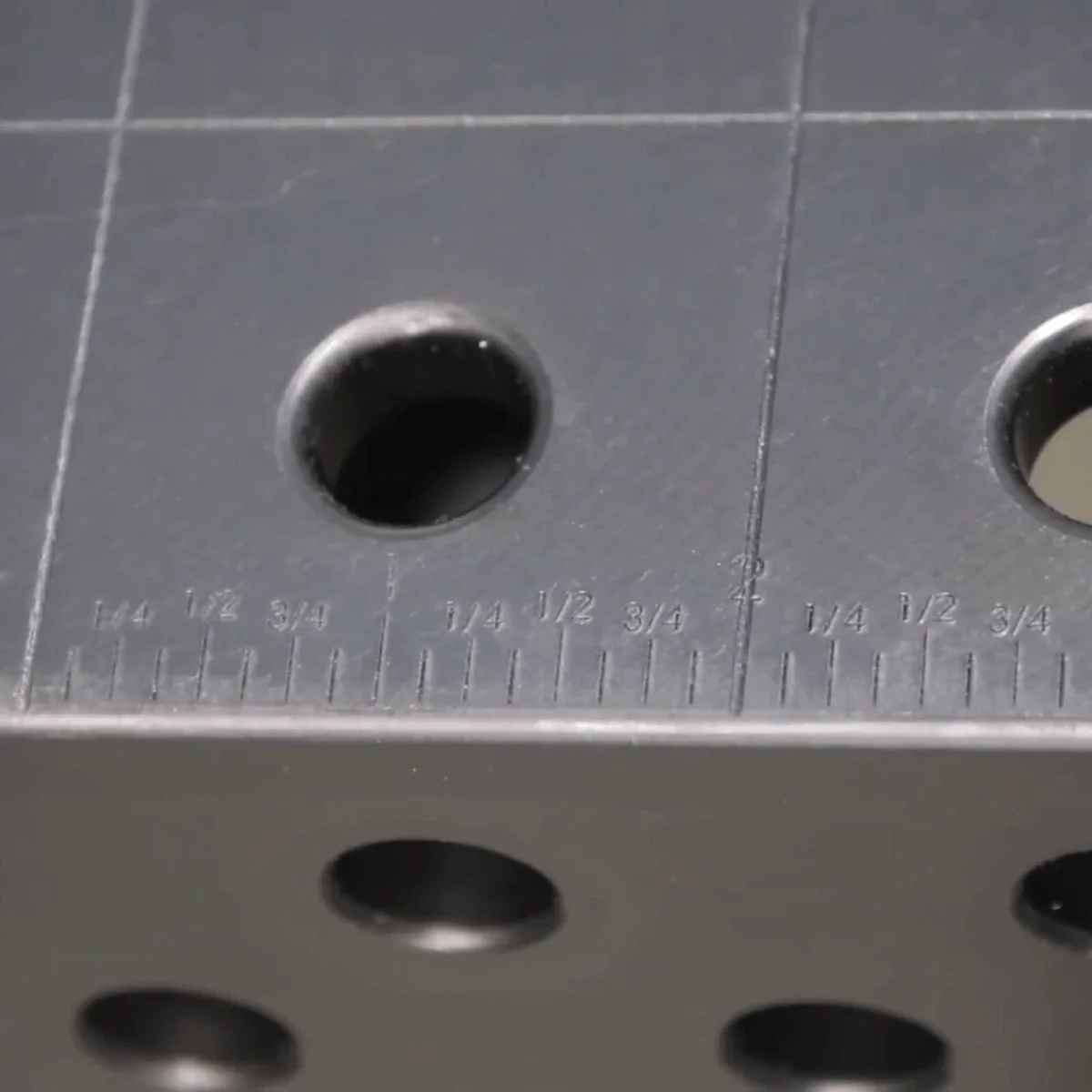

  5. INCH Scale Engraved on the Surface.

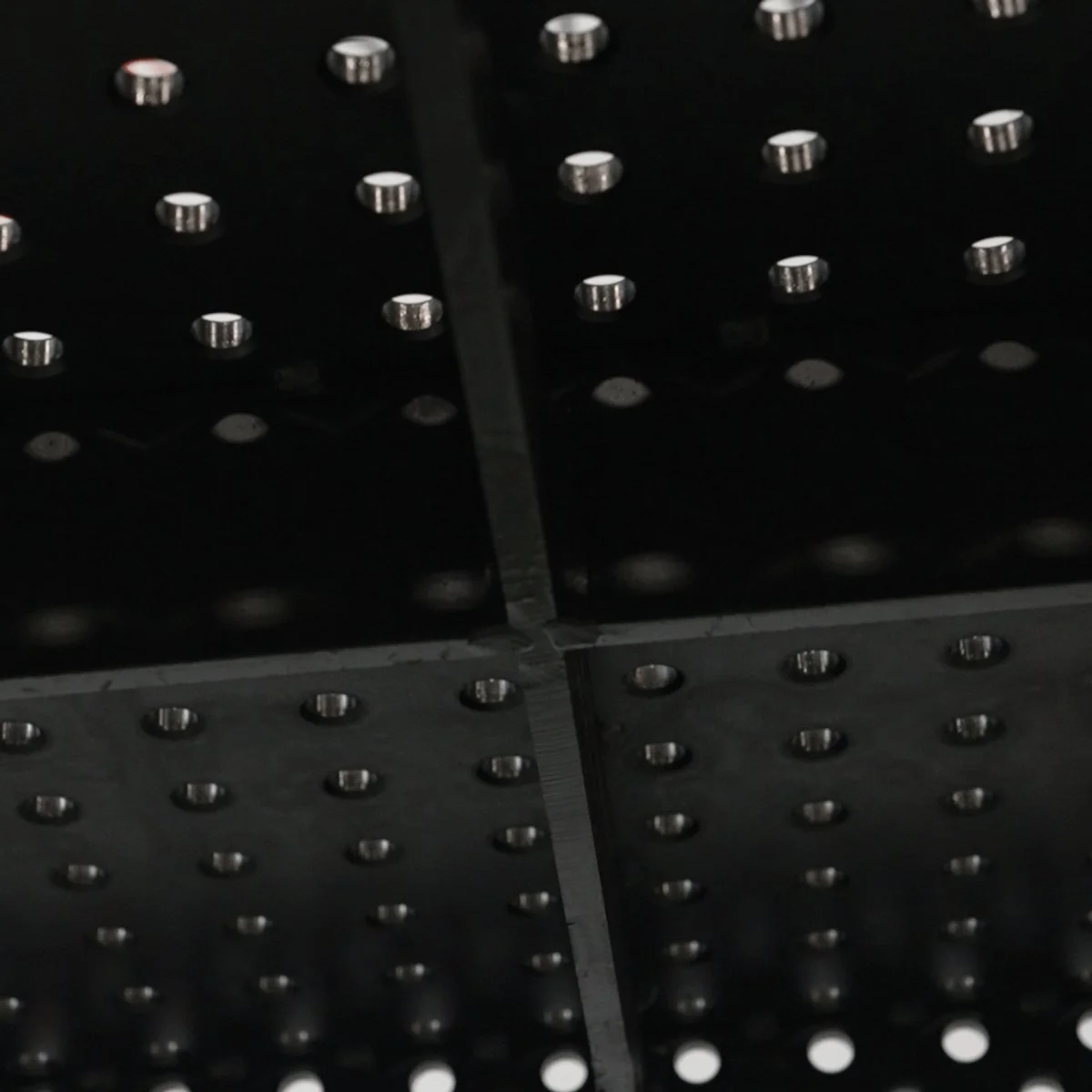

  6. Bottom of Structure has Reinforced Ribbing.
\n
\n
\n

Welding Table Leg Options

Part Numbers, Specs and Pricing

\n
\n

Welding Table Leg Options
Part Numbers, Specs and Pricing

\"\"

Siegmund Welding Table Leg Options Chart

Leg Type Item No. Capacity Per Leg Leg Height Table Height

1. Standard Leg

US160858.X

2,200 lbs.

32\"

36\"

2. Height Adjustable Leg

US160877.1.XX

2,200 lbs.

22\"-38\"

26\"-42\"

3. Leg with Casters and
Locking Brakes

US160876.XX

440 lbs.

32\"

36\"

4. Height Adjustable Leg
with Casters and Locking Brakes

US160879.1.XX

440 lbs.

24\"-36\"

28\"-40\"
\n
\n

System 16 Accessory Sets

The Most Popular Siegmund Accessory Bundles

\n
\n

System 16
Imperial Series Accessory Sets
The Most Popular Siegmund Accessory Bundles

Sold out

Sold out

Sold out

Sold out

Sold out
","image":["https://img.weldingtablesandfixturespro.shop/images/product/us168025-x7-system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2026-special-promotion-1.png","https://img.weldingtablesandfixturespro.shop/images/product/us168025-x7-system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2026-special-promotion-2.jpg","https://img.weldingtablesandfixturespro.shop/images/product/us168025-x7-system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2026-special-promotion-3.jpg","https://img.weldingtablesandfixturespro.shop/images/product/us168025-x7-system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2026-special-promotion-4.jpg","https://img.weldingtablesandfixturespro.shop/images/product/us168025-x7-system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2026-special-promotion-5.jpg","https://img.weldingtablesandfixturespro.shop/images/product/us168025-x7-system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2026-special-promotion-6.jpg","https://img.weldingtablesandfixturespro.shop/images/product/us168025-x7-system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2026-special-promotion-7.jpg","https://img.weldingtablesandfixturespro.shop/images/product/us168025-x7-system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2026-special-promotion-8.jpg","https://img.weldingtablesandfixturespro.shop/images/product/us168025-x7-system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2026-special-promotion-9.jpg","https://img.weldingtablesandfixturespro.shop/images/product/us168025-x7-system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2026-special-promotion-10.jpg","https://img.weldingtablesandfixturespro.shop/images/product/us168025-x7-system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2026-special-promotion-11.jpg","https://img.weldingtablesandfixturespro.shop/images/product/us168025-x7-system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2026-special-promotion-12.jpg","https://img.weldingtablesandfixturespro.shop/images/product/us168025-x7-system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2026-special-promotion-13.jpg","https://img.weldingtablesandfixturespro.shop/images/product/us168025-x7-system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2026-special-promotion-14.jpg","https://img.weldingtablesandfixturespro.shop/images/product/us168025-x7-system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2026-special-promotion-15.jpg","https://img.weldingtablesandfixturespro.shop/images/product/us168025-x7-system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2026-special-promotion-16.jpg","https://img.weldingtablesandfixturespro.shop/images/product/us168025-x7-system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2026-special-promotion-17.jpg","https://img.weldingtablesandfixturespro.shop/images/product/us168025-x7-system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2026-special-promotion-18.jpg","https://img.weldingtablesandfixturespro.shop/images/product/us168025-x7-system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2026-special-promotion-19.jpg","https://img.weldingtablesandfixturespro.shop/images/product/us168025-x7-system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2026-special-promotion-20.jpg"],"sku":"us168025-x7-system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2026-special-promotion","brand":{"@type":"Brand","name":"Siegmund Welding Tables"},"offers":{"@type":"AggregateOffer","lowPrice":1517.7,"highPrice":1719.3,"priceCurrency":"USD","availability":"https://schema.org/InStock","url":"https://weldingtablesandfixturespro.shop/products/us168025-x7-system-16-3x4-36x48-imperial-series-inch-welding-table-bundle-2026-special-promotion","offerCount":4}}
HomeStore

US168025.X7: System 16 3'x4' (36"x48") Imperial Series (Inch) Welding Table Bundle (2026 SPECIAL PROMOTION)

US168025.X7: System 16 3'x4' (36"x48") Imperial Series (Inch) Welding Table Bundle (2026 SPECIAL PROMOTION)

The System 16 Welding Table Series is the ideal choice for fine detail applications.

All System 16 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability.
Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.

Items Included in Bundle #US168025.X7

for the Siegmund System 16 Welding Tables (35 Piece Bundle)

Weight of Bundle: 530 lbs.

Get started right with your new welding table, or easily extend the capabilities of your current welding tables by purchasing a Set of Tooling dedicated to 16mm (5/8") Bore Holed Siegmund Imperial Series Welding Tables.

Accessories Included in
Set #5
for the Siegmund System 16 Welding Tables
(117 Pieces)

Total Weight of Set: 245 lbs.

Get started right with your new welding table, or easily extend the capabilities of your current welding tables by purchasing a Set of Tooling dedicated to 16mm (0.63") Bore Holed Siegmund Welding Tables.

Items Included
in Bundle #US168025.XD7
for the Siegmund System 16 Imperial Series Welding Tables
(35 Piece Bundle)

Weight of Bundle: 530 lbs.

Get started right with your new welding table, or easily extend the capabilities of your current welding tables by purchasing a Set of Tooling dedicated to 16mm (5/8") Bore Holed Siegmund Imperial Series Welding Tables.

US160025.X7
Quantity: 1
3'x4' Imperial Series Welding Table
(Plasma Nitrided)

US160610.N
Quantity: 4

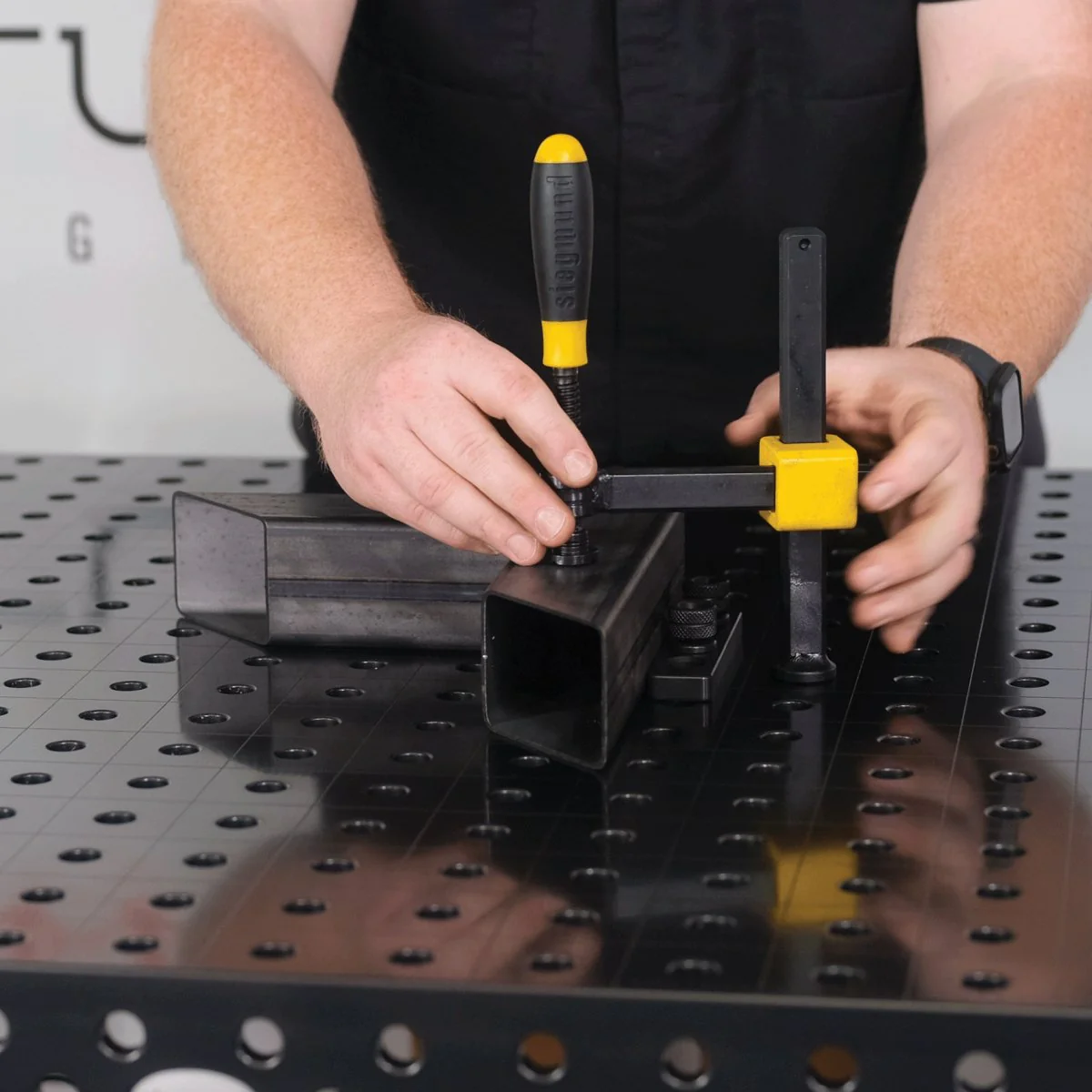

Professional Screw Clamp (Nitrided)

US160511
Quantity: 12
Short Fast Clamping Bolt (Burnished)

US160420.N
Quantity: 8
5" Universal Stop (Nitrided)

US160162.N
Quantity: 4

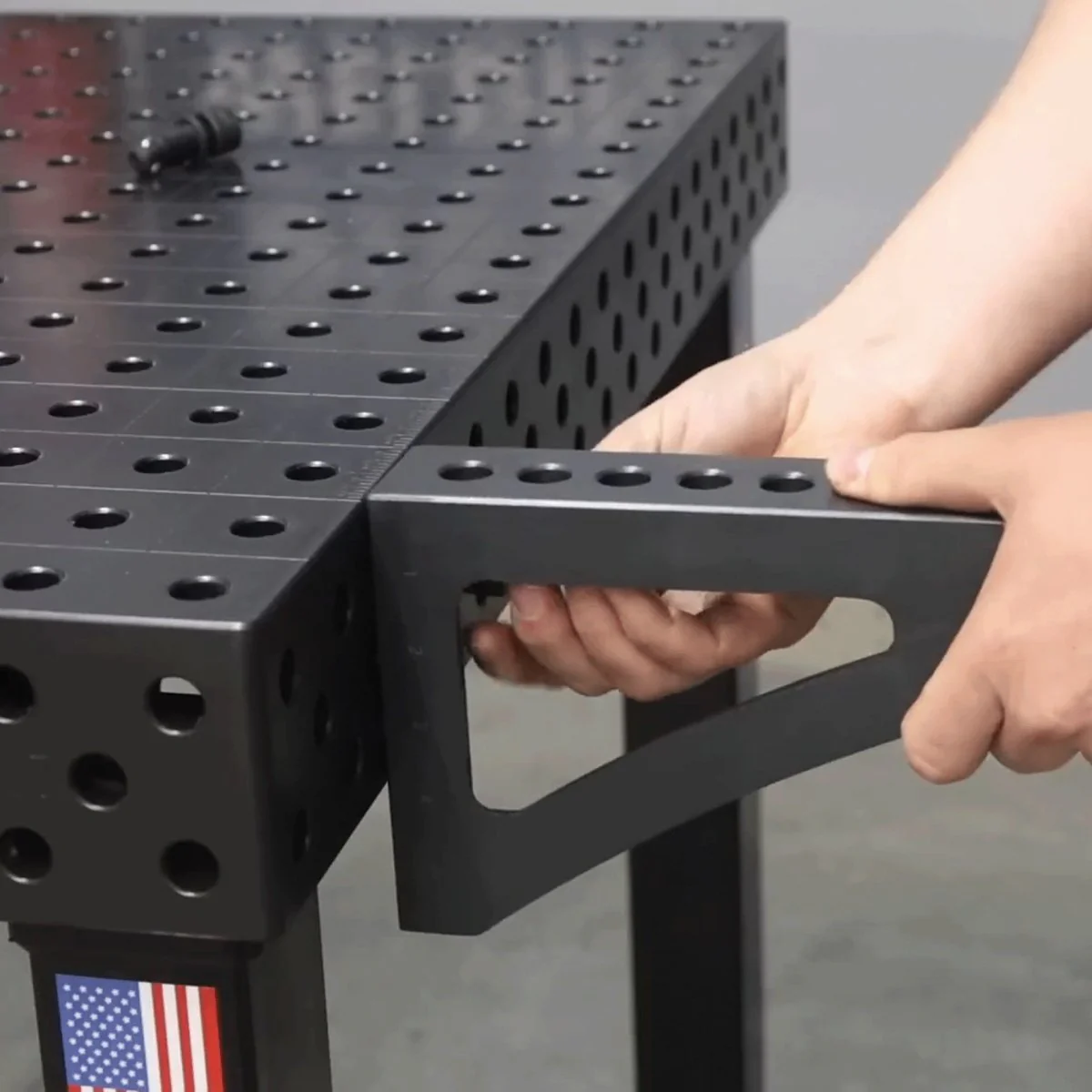

12" Stop and Clamping Square
