The System 16 Welding Table Series is the ideal choice for fine detail applications.

All System 16 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability.

Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.

\"\"
\"\"
  • The materials used are fundamental to the high level of hardness and long service life.
  • With a Siegmund® table, you will experience long-term savings, thanks to the high level of precision engineering, as well as the consistent superior quality.
  • Side surface of Professional Extreme 8.7 is made of specific basic material S355J2+N incl. plasma nitriding and BAR-coating.
\"\"
\n
\nSiegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.\n
\"\"
\n
\n

Specs and Features

of the System 16, 8.7 Imperial Series Welding Tables

\n
\n

Specs & Features
of the System 16, 8.7 Imperial Series
Welding Tables

\"\"
\n
\n

Welding Table Specs and Features:

  • \nOverall Tabletop Size: 5' x 10' (60\" x 120\")
  • \nBorehole Diameter: Ø 16mm (5/8\")
  • \nWelding Table Series: Professional Extreme 8.7 Series
  • \nWelding Table Material Thickness: Approx. 7/16\" to 1/2\"
  • \nWelding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
  • \nTable Surface Hardness: 450-850 Vickers
  • \nOfficial Siegmund Welding Table Part No.: US160040.X7
  • \nMaximum Weight Load: 7,170 lbs. (Based on Even Distribution)
  • \nApproximate Table Weight: 1,725 lbs.
  1. Boreholes on the Surface are a 2\"x2\" Inch Grid Configuration.
  2. Boreholes have a diameter of 16mm (5/8\"), Boreholes have a 1/16\" Radius.
  3. Radius 1/10\" on the table edges and 1/4\" on the corners.
  4. Height of table side is 3-5/16\" - Borehole in Diagonal Grid.
  5. INCH Scale Engraved on the Surface.
  6. Bottom of Structure has Reinforced Ribbing.
\n
\"\"
\n
\n

Welding Table Leg Options

Part Numbers, Specs and Pricing

\n
\n

Welding Table Leg Options
Part Numbers, Specs and Pricing

\"\"

Siegmund Welding Table Leg Options Chart

Leg Type Item No. Capacity Per Leg Leg Height Table Height Cost Per Leg

1. Standard Leg

US160858.X

2,200 lbs.

32\"

36\"

Included

2. Height Adjustable Leg

US160877.1.XX

2,200 lbs.

22\"-38\"

26\"-42\"

$102

3. Leg with Casters and
Locking Brakes

US160876.XX

440 lbs.

32\"

36\"

$112

4. Height Adjustable Leg
with Casters and Locking Brakes

US160879.1.XX

440 lbs.

24\"-36\"

28\"-40\"

$142

Siegmund System 16 Imperial Series Welding Table Leg Options
(Full Specifications)

\n
\n

1. Standard Siegmund Leg(s)

  • \nItem No.: US160858.X
  • \nLeg Height: 32\"
  • \nTable Height: 36\"
  • \nFine Adjustment: 1-5/8\"
  • \nCapacity Per Table Leg: 2,200 lbs.
  • \nCost Per Leg: $0 (Included with Welding Table as a Standard)
  • \nCost Per 6 Leg Set: $0 (Included with Welding Table as a Standard)
\n
\n
\n

2. Height Adjustable Siegmund Leg(s)

  • \nItem No.: US160877.1.XX
  • \nLeg Height (Adjustable): 22\" - 38\"
  • \nTable Height (Adjustable): 26\" - 42\"
  • \nFine Adjustment: 1-5/8\"
  • \nCapacity Per Table Leg: 2,200 lbs.
  • \nCost Per Leg: $102
  • \nCost Per 6 Leg Set: $612
\n
\n
\n

3. Siegmund Leg(s) with Casters and Locking Brakes

  • \nItem No.: US160876.XX
  • \nLeg Height: 32\"
  • \nTable Height: 36\"
  • \nFine Adjustment: 1-3/16\"
  • \nCapacity Per Table Leg: 440 lbs.
  • \nCost Per Leg: $112
  • \nCost Per 6 Leg Set: $672
\n
\n
\n

4. Height Adjustable Leg(s) with Casters and Locking Brakes

  • \nItem No.: US160879.1.XX
  • \nLeg Height (Adjustable): 24\" - 36\"
  • \nTable Height (Adjustable): 28\" - 40\"
  • \nFine Adjustment: 1-3/16\"
  • \nCapacity Per Table Leg: 440 lbs.
  • \nCost Per Leg: $169
  • \nCost Per 6 Leg Set: $1,014
\n
\n
\n

System 16 Accessory Sets

The Most Popular Siegmund Accessory Bundles

\n
\n

System 16
Imperial Series Accessory Sets
The Most Popular Siegmund Accessory Bundles

Sold out

Sold out

Sold out

Sold out

Sold out
\"\"
\n
\n

Featured Siegmund Videos

of Siegmund Welding Tables

\n
\n

Featured Siegmund Videos
of the System 16 Welding Tables

\n

Impact Test Standard Weld Table vs Siegmund Weld Table

\n

Why Our Welding Tables are Plasma Nitrided

\n

The Strength of a Siegmund Welding Table

\n

\"You Can Produce Everything...\"

\n
\n

This Month's

Featured Siegmund Welders

\n
\n

This Month's
Featured Siegmund Welders

Greg from Red Beard's Garage

Red Beard’s Garage is world famous and has over 440,000+ Youtube Subscribers!
Red Beard (Greg) and his team builds all types of Go-Karts and definitely have a blast doing it - so be sure to follow their channel on Youtube. Red Beard’s Garage solely trusts Quantum Machinery and Siegmund to supply and support all of their Welding Table and Fixturing needs!
(There is bound to be something that will “tickle your fancy”! )

\n
\n

Jeff Lutz (Lutz Race Cars) from Street Outlaws

Jeff Lutz (Lutzs Race Cars) from Street Outlaws is world famous and has over 585,000+ Instagram Followers and over 583,000+ Facebook Fans and is currently filming with his Siegmund table on the Discover Channel! When he received his Siegmund Welding Table and Accessories from us, he had nothing but the best things to say, \"Wow it is amazing!\" and after spending a few weeks with it, Jeff wrote on his instagram that his Siegmund Welding Table makes fixturing everything so much easier for him and his team!

\"\"
\"\"

Here is a video of Jeff Lutz in a drag race, for your own entertainment!

\n
\n

Contact a Siegmund Expert

Feel free to contact us today to place an order or let us know
if you have any questions about any Siegmund's Products.

\n
\n
\n
Contact a Siegmund Expert
Feel free to contact us today to place an order or let us know if you have any questions about any Siegmund's Products.
\n

Contact our team of Factory Trained, In-House Siegmund U.S.A. Experts for all of your Siegmund Inquiries and questions! You can also place your order online or over the phone.

Phone: (909)476-8007
Email: [email protected]

Contact our team of Factory Trained, In-House Siegmund U.S.A. Experts for all of your Siegmund Inquiries and questions! You can also place your order online or over the phone.

Phone: (704)703-9400      Email: [email protected]

If you would like for us to contact you, simply fill out the form below and one of our Siegmund Experts will be in contact with you shortly.

Thanks!
This field is required
This field is required
This field is required
This field is required
This field is required
This field is required
","image":["https://img.weldingtablesandfixturespro.shop/images/product/us160040-x7-system-16-5x10-60x120-siegmund-imperial-series-inch-welding-table-with-plasma-nitration-1.jpg","https://img.weldingtablesandfixturespro.shop/images/product/us160040-x7-system-16-5x10-60x120-siegmund-imperial-series-inch-welding-table-with-plasma-nitration-2.jpg","https://img.weldingtablesandfixturespro.shop/images/product/us160040-x7-system-16-5x10-60x120-siegmund-imperial-series-inch-welding-table-with-plasma-nitration-3.jpg","https://img.weldingtablesandfixturespro.shop/images/product/us160040-x7-system-16-5x10-60x120-siegmund-imperial-series-inch-welding-table-with-plasma-nitration-4.jpg","https://img.weldingtablesandfixturespro.shop/images/product/us160040-x7-system-16-5x10-60x120-siegmund-imperial-series-inch-welding-table-with-plasma-nitration-5.jpg"],"sku":"us160040-x7-system-16-5x10-60x120-siegmund-imperial-series-inch-welding-table-with-plasma-nitration","brand":{"@type":"Brand","name":"Siegmund Welding Tables"},"offers":{"@type":"AggregateOffer","lowPrice":3937.5,"highPrice":4264.8,"priceCurrency":"USD","availability":"https://schema.org/InStock","url":"https://weldingtablesandfixturespro.shop/products/us160040-x7-system-16-5x10-60x120-siegmund-imperial-series-inch-welding-table-with-plasma-nitration","offerCount":4}}
HomeStore

US160040.X7: System 16 5'x10' (60"x120") Siegmund Imperial Series (Inch) Welding Table with Plasma Nitration

US160040.X7: System 16 5'x10' (60"x120") Siegmund Imperial Series (Inch) Welding Table with Plasma Nitration

The System 16 Welding Table Series is the ideal choice for fine detail applications.

All System 16 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability.

Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.

  • The materials used are fundamental to the high level of hardness and long service life.
  • With a Siegmund® table, you will experience long-term savings, thanks to the high level of precision engineering, as well as the consistent superior quality.
  • Side surface of Professional Extreme 8.7 is made of specific basic material S355J2+N incl. plasma nitriding and BAR-coating.
Siegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.

Specs and Features

of the System 16, 8.7 Imperial Series Welding Tables

Specs & Features
of the System 16, 8.7 Imperial Series
Welding Tables

Welding Table Specs and Features:

  • Overall Tabletop Size: 5' x 10' (60" x 120")
  • Borehole Diameter: Ø 16mm (5/8")
  • Welding Table Series: Professional Extreme 8.7 Series
  • Welding Table Material Thickness: Approx. 7/16" to 1/2"
  • Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
  • Table Surface Hardness: 450-850 Vickers
  • Official Siegmund Welding Table Part No.: US160040.X7
  • Maximum Weight Load: 7,170 lbs. (Based on Even Distribution)
  • Approximate Table Weight: 1,725 lbs.
  1. Boreholes on the Surface are a 2"x2" Inch Grid Configuration.
  2. Boreholes have a diameter of 16mm (5/8"), Boreholes have a 1/16" Radius.
  3. Radius 1/10" on the table edges and 1/4" on the corners.
  4. Height of table side is 3-5/16" - Borehole in Diagonal Grid.
  5. INCH Scale Engraved on the Surface.
  6. Bottom of Structure has Reinforced Ribbing.

Welding Table Leg Options

Part Numbers, Specs and Pricing

Welding Table Leg Options
Part Numbers, Specs and Pricing

Siegmund Welding Table Leg Options Chart

Leg Type Item No. Capacity Per Leg Leg Height Table Height Cost Per Leg

1. Standard Leg

US160858.X

2,200 lbs.

32"

36"

Included

2. Height Adjustable Leg

US160877.1.XX

2,200 lbs.

22"-38"

26"-42"

$102

3. Leg with Casters and
Locking Brakes

US160876.XX

440 lbs.

32"

36"

$112

4. Height Adjustable Leg
with Casters and Locking Brakes

US160879.1.XX

440 lbs.

24"-36"

28"-40"

$142

Siegmund System 16 Imperial Series Welding Table Leg Options
(Full Specifications)

1. Standard Siegmund Leg(s)

  • Item No.: US160858.X
  • Leg Height: 32"
  • Table Height: 36"
  • Fine Adjustment: 1-5/8"
  • Capacity Per Table Leg: 2,200 lbs.
  • Cost Per Leg: $0 (Included with Welding Table as a Standard)
  • Cost Per 6 Leg Set: $0 (Included with Welding Table as a Standard)

2. Height Adjustable Siegmund Leg(s)

  • Item No.: US160877.1.XX
  • Leg Height (Adjustable): 22" - 38"
  • Table Height (Adjustable): 26" - 42"
  • Fine Adjustment: 1-5/8"
  • Capacity Per Table Leg: 2,200 lbs.
  • Cost Per Leg: $102
  • Cost Per 6 Leg Set: $612

3. Siegmund Leg(s) with Casters and Locking Brakes

  • Item No.: US160876.XX
  • Leg Height: 32"
  • Table Height: 36"
  • Fine Adjustment: 1-3/16"
  • Capacity Per Table Leg: 440 lbs.
  • Cost Per Leg: $112
  • Cost Per 6 Leg Set: $672

4. Height Adjustable Leg(s) with Casters and Locking Brakes

  • Item No.: US160879.1.XX
  • Leg Height (Adjustable): 24" - 36"
  • Table Height (Adjustable): 28" - 40"
  • Fine Adjustment: 1-3/16"
  • Capacity Per Table Leg: 440 lbs.
  • Cost Per Leg: $169
  • Cost Per 6 Leg Set: $1,014

System 16 Accessory Sets

The Most Popular Siegmund Accessory Bundles

System 16
Imperial Series Accessory Sets
The Most Popular Siegmund Accessory Bundles

Sold out

Sold out

Sold out

Sold out

Sold out

Featured Siegmund Videos

of Siegmund Welding Tables

Featured Siegmund Videos
of the System 16 Welding Tables

Impact Test Standard Weld Table vs Siegmund Weld Table

Why Our Welding Tables are Plasma Nitrided

The Strength of a Siegmund Welding Table

"You Can Produce Everything..."

This Month's

Featured Siegmund Welders

This Month's
Featured Siegmund Welders

Greg from Red Beard's Garage

Red Beard’s Garage is world famous and has over 440,000+ Youtube Subscribers!
Red Beard (Greg) and his team builds all types of Go-Karts and definitely have a blast doing it - so be sure to follow their channel on Youtube. Red Beard’s Garage solely trusts Quantum Machinery and Siegmund to supply and support all of their Welding Table and Fixturing needs!
(There is bound to be something that will “tickle your fancy”! )

Jeff Lutz (Lutz Race Cars) from Street Outlaws

Jeff Lutz (Lutzs Race Cars) from Street Outlaws is world famous and has over 585,000+ Instagram Followers and over 583,000+ Facebook Fans and is currently filming with his Siegmund table on the Discover Channel! When he received his Siegmund Welding Table and Accessories from us, he had nothing but the best things to say, "Wow it is amazing!" and after spending a few weeks with it, Jeff wrote on his instagram that his Siegmund Welding Table makes fixturing everything so much easier for him and his team!

Here is a video of Jeff Lutz in a drag race, for your own entertainment!

Contact a Siegmund Expert

Feel free to contact us today to place an order or let us know
if you have any questions about any Siegmund's Products.

Contact a Siegmund Expert
Feel free to contact us today to place an order or let us know if you have any questions about any Siegmund's Products.

Contact our team of Factory Trained, In-House Siegmund U.S.A. Experts for all of your Siegmund Inquiries and questions! You can also place your order online or over the phone.

Phone: (909)476-8007
Email: [email protected]

Contact our team of Factory Trained, In-House Siegmund U.S.A. Experts for all of your Siegmund Inquiries and questions! You can also place your order online or over the phone.

Phone: (704)703-9400      Email: [email protected]

If you would like for us to contact you, simply fill out the form below and one of our Siegmund Experts will be in contact with you shortly.

Thanks!
This field is required
This field is required
This field is required
This field is required
This field is required
This field is required
Select Table Legs
From $3,937.50

Original: $13,125.00

-70%
US160040.X7: System 16 5'x10' (60"x120") Siegmund Imperial Series (Inch) Welding Table with Plasma Nitration—

$13,125.00

$3,937.50
Product image 1
Product image 2
Product image 3

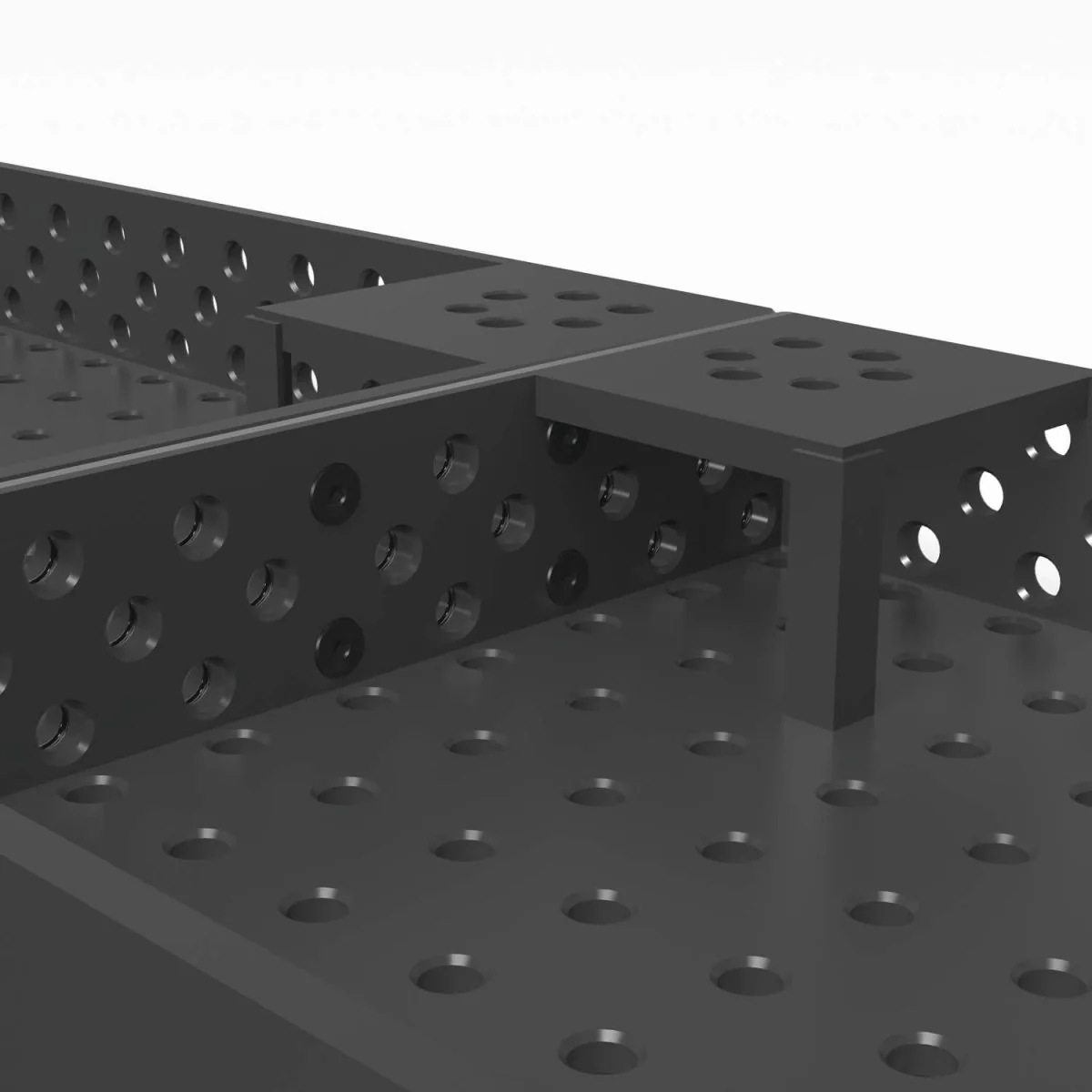

Product image 4

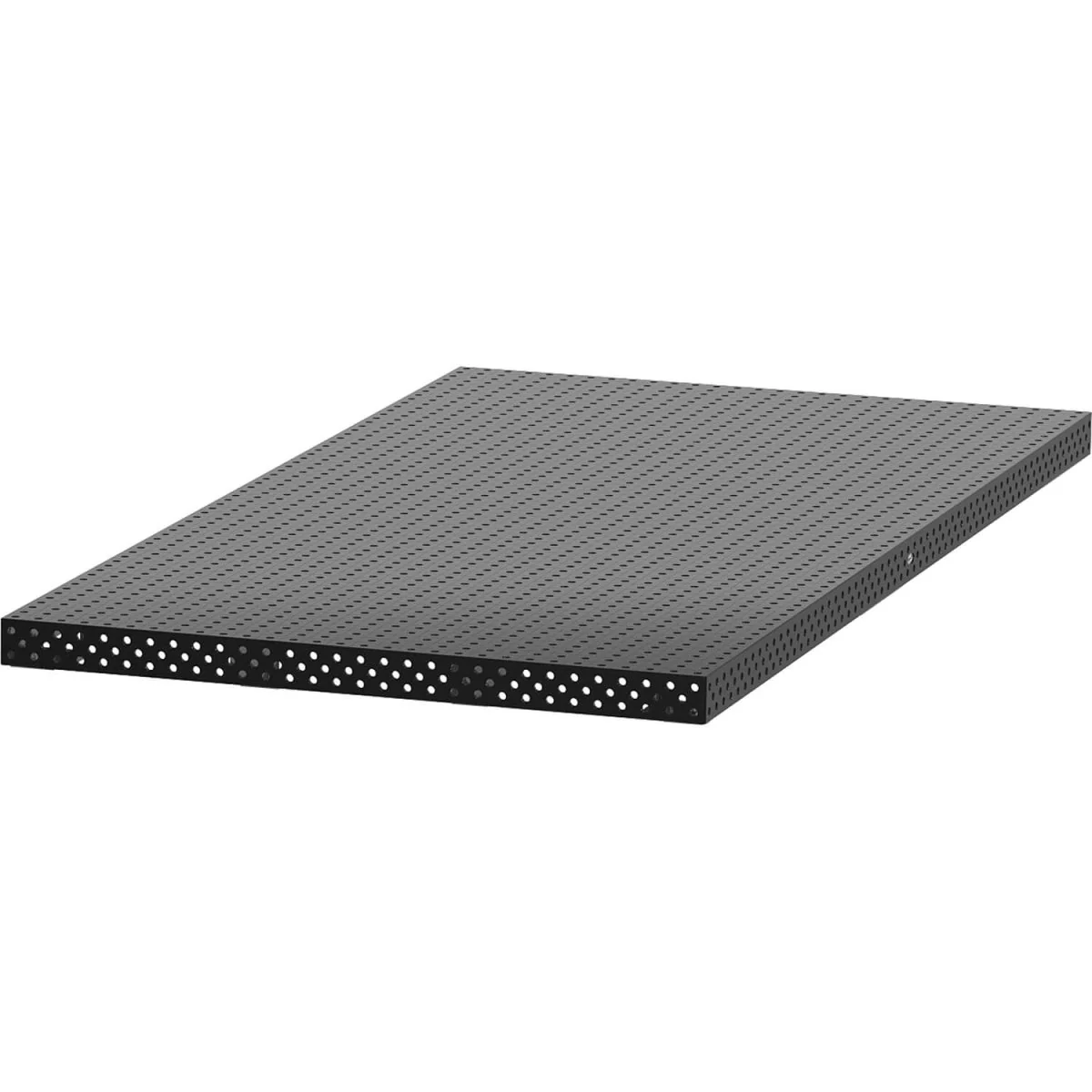

Product image 5

Description

The System 16 Welding Table Series is the ideal choice for fine detail applications.

All System 16 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability.

Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.

  • The materials used are fundamental to the high level of hardness and long service life.
  • With a Siegmund® table, you will experience long-term savings, thanks to the high level of precision engineering, as well as the consistent superior quality.
  • Side surface of Professional Extreme 8.7 is made of specific basic material S355J2+N incl. plasma nitriding and BAR-coating.
Siegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.

Specs and Features

of the System 16, 8.7 Imperial Series Welding Tables

Specs & Features
of the System 16, 8.7 Imperial Series
Welding Tables

Welding Table Specs and Features:

  • Overall Tabletop Size: 5' x 10' (60" x 120")
  • Borehole Diameter: Ø 16mm (5/8")
  • Welding Table Series: Professional Extreme 8.7 Series
  • Welding Table Material Thickness: Approx. 7/16" to 1/2"
  • Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
  • Table Surface Hardness: 450-850 Vickers
  • Official Siegmund Welding Table Part No.: US160040.X7
  • Maximum Weight Load: 7,170 lbs. (Based on Even Distribution)
  • Approximate Table Weight: 1,725 lbs.
  1. Boreholes on the Surface are a 2"x2" Inch Grid Configuration.
  2. Boreholes have a diameter of 16mm (5/8"), Boreholes have a 1/16" Radius.
  3. Radius 1/10" on the table edges and 1/4" on the corners.
  4. Height of table side is 3-5/16" - Borehole in Diagonal Grid.
  5. INCH Scale Engraved on the Surface.
  6. Bottom of Structure has Reinforced Ribbing.

Welding Table Leg Options

Part Numbers, Specs and Pricing

Welding Table Leg Options
Part Numbers, Specs and Pricing

Siegmund Welding Table Leg Options Chart

Leg Type Item No. Capacity Per Leg Leg Height Table Height Cost Per Leg

1. Standard Leg

US160858.X

2,200 lbs.

32"

36"

Included

2. Height Adjustable Leg

US160877.1.XX

2,200 lbs.

22"-38"

26"-42"

$102

3. Leg with Casters and
Locking Brakes

US160876.XX

440 lbs.

32"

36"

$112

4. Height Adjustable Leg
with Casters and Locking Brakes

US160879.1.XX

440 lbs.

24"-36"

28"-40"

$142

Siegmund System 16 Imperial Series Welding Table Leg Options
(Full Specifications)

1. Standard Siegmund Leg(s)

  • Item No.: US160858.X
  • Leg Height: 32"
  • Table Height: 36"
  • Fine Adjustment: 1-5/8"
  • Capacity Per Table Leg: 2,200 lbs.
  • Cost Per Leg: $0 (Included with Welding Table as a Standard)
  • Cost Per 6 Leg Set: $0 (Included with Welding Table as a Standard)

2. Height Adjustable Siegmund Leg(s)

  • Item No.: US160877.1.XX
  • Leg Height (Adjustable): 22" - 38"
  • Table Height (Adjustable): 26" - 42"
  • Fine Adjustment: 1-5/8"
  • Capacity Per Table Leg: 2,200 lbs.
  • Cost Per Leg: $102
  • Cost Per 6 Leg Set: $612

3. Siegmund Leg(s) with Casters and Locking Brakes

  • Item No.: US160876.XX
  • Leg Height: 32"
  • Table Height: 36"
  • Fine Adjustment: 1-3/16"
  • Capacity Per Table Leg: 440 lbs.
  • Cost Per Leg: $112
  • Cost Per 6 Leg Set: $672

4. Height Adjustable Leg(s) with Casters and Locking Brakes

  • Item No.: US160879.1.XX
  • Leg Height (Adjustable): 24" - 36"
  • Table Height (Adjustable): 28" - 40"
  • Fine Adjustment: 1-3/16"
  • Capacity Per Table Leg: 440 lbs.
  • Cost Per Leg: $169
  • Cost Per 6 Leg Set: $1,014

System 16 Accessory Sets

The Most Popular Siegmund Accessory Bundles

System 16
Imperial Series Accessory Sets
The Most Popular Siegmund Accessory Bundles

Sold out

Sold out

Sold out

Sold out

Sold out

Featured Siegmund Videos

of Siegmund Welding Tables

Featured Siegmund Videos
of the System 16 Welding Tables

Impact Test Standard Weld Table vs Siegmund Weld Table

Why Our Welding Tables are Plasma Nitrided

The Strength of a Siegmund Welding Table

"You Can Produce Everything..."

This Month's

Featured Siegmund Welders

This Month's
Featured Siegmund Welders

Greg from Red Beard's Garage

Red Beard’s Garage is world famous and has over 440,000+ Youtube Subscribers!
Red Beard (Greg) and his team builds all types of Go-Karts and definitely have a blast doing it - so be sure to follow their channel on Youtube. Red Beard’s Garage solely trusts Quantum Machinery and Siegmund to supply and support all of their Welding Table and Fixturing needs!
(There is bound to be something that will “tickle your fancy”! )

Jeff Lutz (Lutz Race Cars) from Street Outlaws

Jeff Lutz (Lutzs Race Cars) from Street Outlaws is world famous and has over 585,000+ Instagram Followers and over 583,000+ Facebook Fans and is currently filming with his Siegmund table on the Discover Channel! When he received his Siegmund Welding Table and Accessories from us, he had nothing but the best things to say, "Wow it is amazing!" and after spending a few weeks with it, Jeff wrote on his instagram that his Siegmund Welding Table makes fixturing everything so much easier for him and his team!

Here is a video of Jeff Lutz in a drag race, for your own entertainment!

Contact a Siegmund Expert

Feel free to contact us today to place an order or let us know
if you have any questions about any Siegmund's Products.

Contact a Siegmund Expert
Feel free to contact us today to place an order or let us know if you have any questions about any Siegmund's Products.

Contact our team of Factory Trained, In-House Siegmund U.S.A. Experts for all of your Siegmund Inquiries and questions! You can also place your order online or over the phone.

Phone: (909)476-8007
Email: [email protected]

Contact our team of Factory Trained, In-House Siegmund U.S.A. Experts for all of your Siegmund Inquiries and questions! You can also place your order online or over the phone.

Phone: (704)703-9400      Email: [email protected]

If you would like for us to contact you, simply fill out the form below and one of our Siegmund Experts will be in contact with you shortly.

Thanks!
This field is required
This field is required
This field is required
This field is required
This field is required
This field is required
