2-220560.N: Short Connecting Bolt (Nitrided)

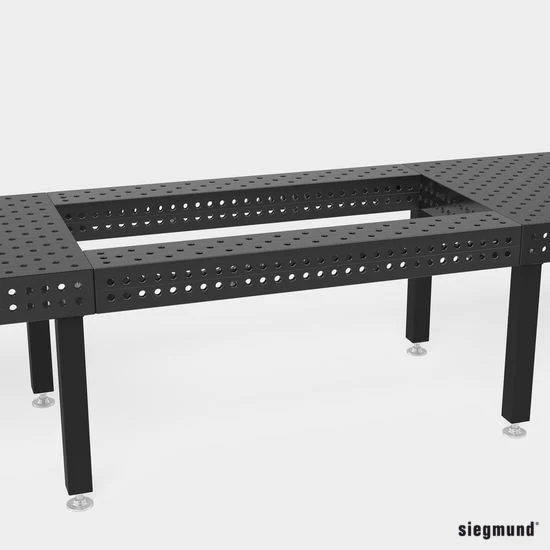

The Siegmund Flushmount Short Connecting Bolt, especially designed to serve as a fixed long-term connection between large Siegmund components, e.g. tables or U-shaped squares.

The flush mount hexagon socket and the ability of the clamping bolt to center itself, facilitate simple assembly. The countersunk head and the countersunk-head screw are equipped with a 10 hexagonal bit for clamping.

The Connecting Bolt enables sturdy bolting. The Connecting Bolt is not suitable for the use in oblong holes.

Specs and Features:
- Item No. 2-220560.N
- Nitrided
- For Connecting 2 Siegmund Components
- With Hexagon Socket
- Length: 36mm (1.14")
- Diameter Ø: 22mm (0.86'')
- SK: 120 kN
- AM: 15 Nm
- ZK: 6 kN
- Weight: 0.13 Ibs.
